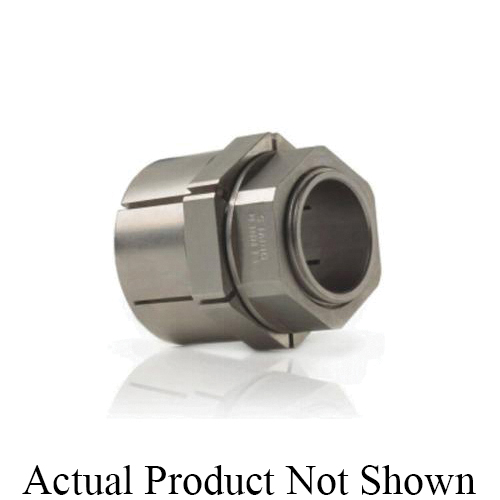

Fenner Drives® Trantorque® 6202380 GT Series Collar Nut Keyless Bushing, 1-7/16 in Dia Bore, 2-3/8 in OD, 2-3/4 in OAL, Steel
From gears to cams, timing belt sprockets to conveyor rolls, climate control fan hubs to grinding wheels, the extensive range of Trantorque® keyless bushings - all with a single locking nut - offers easy to use options for mounting and adjusting position sensitive, zero backlash drive components and accessories.
-
BrandFenner Drives®
-
Manufacturer Part Number6202380
-
CountryUSA
-
FinishZinc Plated
-
MaterialSteel
-
Transmissible Thrust7529 lb
-
Transmissible Torque452 ft-lb
-
TypeCollar Nut
-
SeriesGT Series
-
Hub Contact Pressure5194 psi
-
Outside Diameter2-3/8 in
-
Bore Diameter1-7/16 in
-
Overall Length2-3/4 in
-
UNSPSC31171605
-
Standards/ApprovalsRoHS Compliant
-
Instruction/Installation Manual
