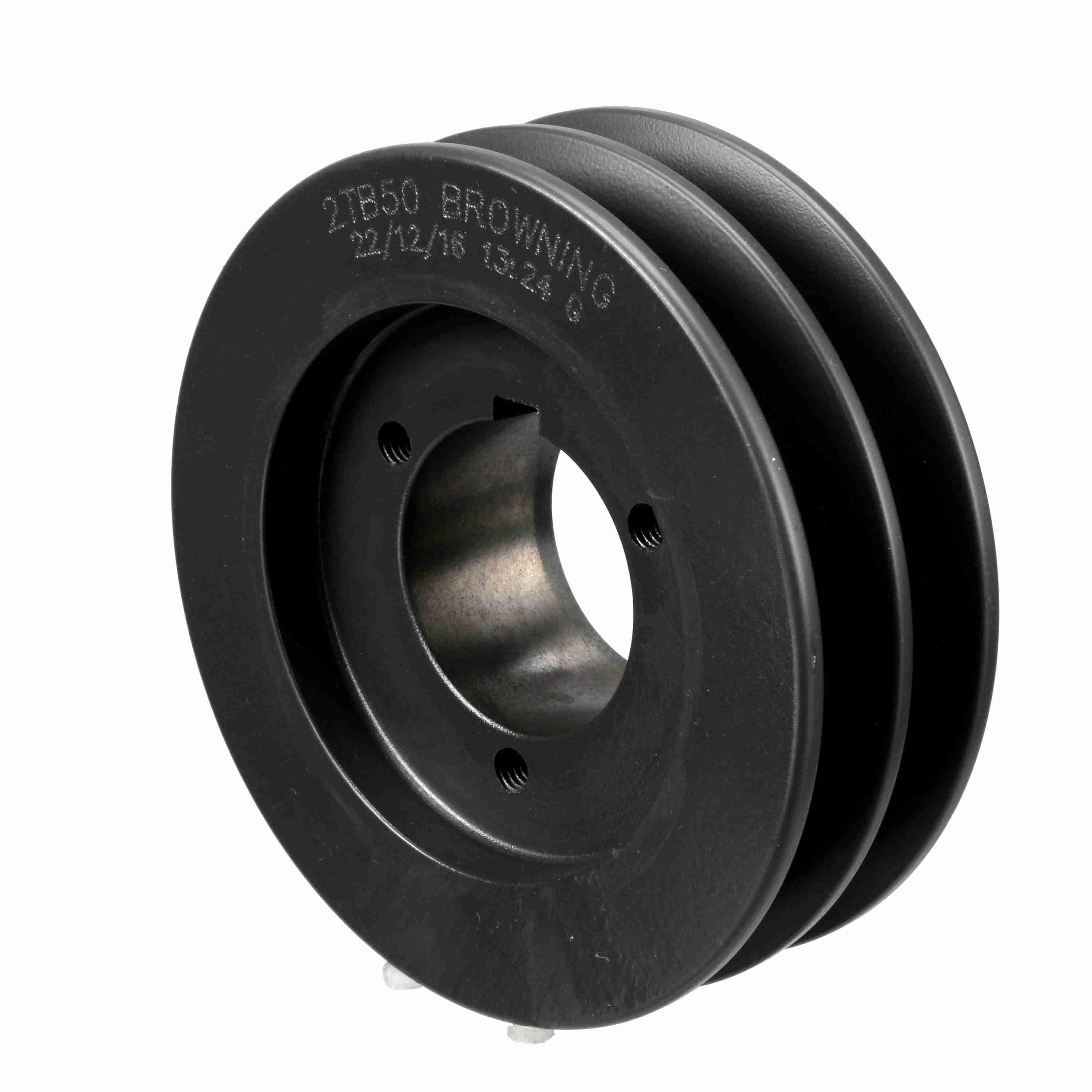

Browning 2-GRV A OR B-BELT P1-BUSH SHEAVES BRW 2-TB-50
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289281442
-
Manufacturer Part Number1001676
-
CountryUSA
-
Face Width1-3/4 in
-
Bushing TypeP1
-
Pitch Diameter4.8 in (A)/5.3 in (B)
-
MaterialCast Iron
-
TypeSolid Type 13
-
SeriesTB Series
-
Hub Projection3/16 in
-
Number of Grooves2
-
Outside Diameter5.35 in
-
Bore Diameter1/2 to 1-3/4 in
-
Bore TypeSplit Taper
-
Overall Length2-9/64 in
-
Suitable For Use WithGripbelt® A and B Cross Section Belts
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Combination Groove - All Browning BK H Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
-
Alternative Part Number2TB50
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
