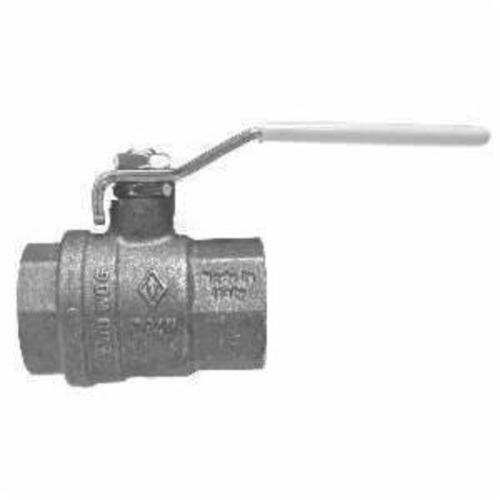

HCI Preferred Supplier 943202 Ball Valve, 1/2 in Nominal, FNPT End Style, Forged Brass Body, Full Port, NBR 80 O-Ring Softgoods
HCI Preferred Supplier 943202 Ball Valve, 1/2 in Nominal, FNPT End Style, Forged Brass Body, Full Port, NBR 80 O-Ring Softgoods
-
BrandGeneric
-
Manufacturer Part Number943202
-
CountryUSA
-
Temperature Rating-20 to 248 deg F
-
Port TypeFull
-
Pressure Rating600 psi WOG, 150 WSP
-
MediaCold Water, Oil, Gas and Saturated Steam
-
Trim MaterialPTFE Ball Stem, Stem Antif Seat and Stem Seat
-
Nominal Size1/2 in
-
Ball MaterialPolished Chrome Brass
-
Dimensions1.57 in H x 2.09 in W
-
Softgoods MaterialNBR 80 O-Ring
-
Domestic/ImportImport
-
Body MaterialForged Brass
-
End StyleFNPT
- Suitable for full range of liquids and Gases
- Minimal pressure drop due to large full size ports
- Bottom loaded, pressure retaining stem
- Yellow vinyl insulator on heavy duty plated carbon steel handles
- Fast 1/4 turn open or close operation
- Low operating torque, flow can go both directions, generic handles
- Hard chromium plated solid ball
- Deeper threads for better connections
- Virgin TFE stem packing seal, thrust washer and seats
- Forged brass end connection, brass ring and nut, steel nut and handle
- NBR 80 O-Ring
-
UNSPSC40141607
-
Package Description20/BX
-
Standards/ApprovalsCSA AGA 3.88 5 PSIG|IAMPO IGC 157 - 2004b|UL842|UL258|UL125|FM|ANSI B1.20.1|AB1953 Compliant
-
