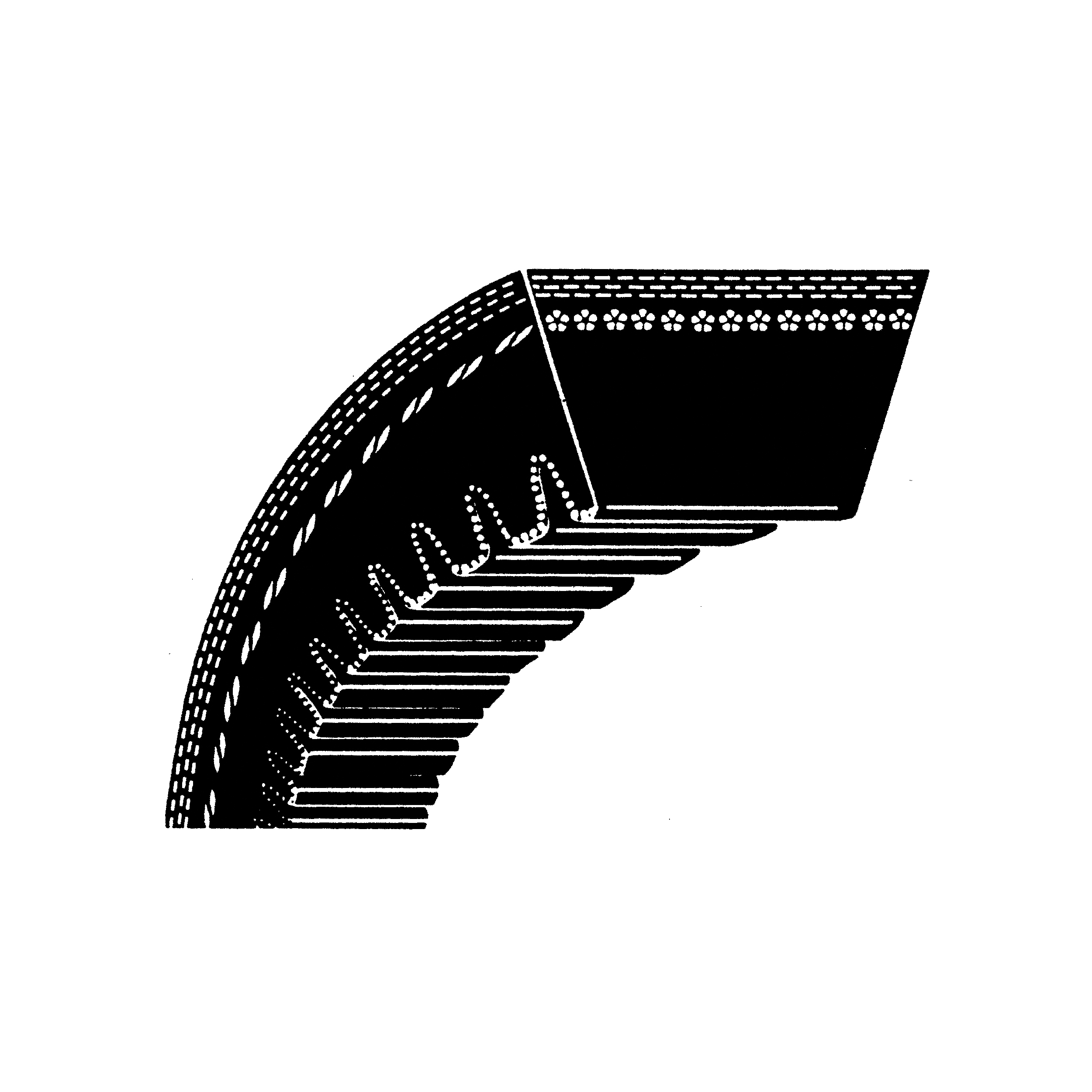

Gates® Power Transmission AX41 Tri-Power® 9012 Cogged Heavy Duty V-Belt, 1/2 in W Top, 43 in L Outside, 5/16 in THK, AX Section, EPDM
Built for superior performance on heavy-duty classical cross-section drives. The raw edge, Ethylene Elastomer construction and special notch design makes the Tri-Power belt especially suited for small diameter pulleys and back-side idler drives.
-
BrandGates® Power Transmission
-
UPC072053631470
-
Manufacturer Part NumberAX41
-
CountryUSA
-
Temperature Range-70 to 250 deg F
-
Thickness5/16 in
-
MaterialEPDM
-
Top Width1/2 in
-
Reinforced MaterialPolyester
-
ColorBlack
-
TypeCogged Heavy Duty
-
Section SizeAX
-
SeriesTri-Power® 9012
-
Number of Ribs1
-
Outside Length43 in
- Constructed with Gates® proprietary construction, this belt has a superior combination of flex and load carrying capacity, as well as less stretch resulting in less maintenance
- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- Notches molded into the belt during manufacturing increase flexibility making this belt well suited for drives with smaller diameter sheaves
- Belt edge is machined for even sheave groove contact resulting in smoother running, less slip and wear
- Static conductive
- Patented ethylene material construction
-
UNSPSC26111801
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
Alternative Part Number90122041
-
Package DescriptionEACH
-
WarrantyLimited
-
Warranty Information
-
