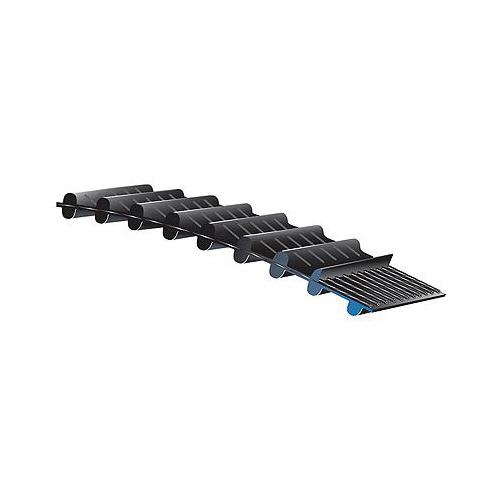

Gates® Power Transmission PowerGrip® HTD® Twin Power® TP1050-5M-15 Double Sided Synchronous Belt, 210 Teeth, 5 mm Pitch, 1050 mm OAL, 15 mm W, Neoprene
Gates® PowerGrip® HTD® Twin Power® belts are designed to perform at high speeds and in extreme temperatures, with a larger tooth profile for increased performance capacity. They have nylon facing on both tooth sides to provide equal load carrying capabilities between the sides.
-
BrandGates® Power Transmission
-
UPC072053532203
-
Manufacturer Part NumberTP1050-5M-15
-
CountryUSA
-
Pitch5 mm
-
Temperature Range-30 to 100 deg C
-
MaterialNeoprene
-
Tooth ProfileCurvilinear
-
Reinforced MaterialFiberglass
-
TypeDouble Sided
-
Width15 mm
-
Series9252
-
Number of Teeth210
-
Overall Length1050 mm
- Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
- Neoprene body provides protection against grime, grease, oil and moisture
- Nylon tooth facing provides a durable wear surface to improve service life
- Runs quieter than roller chain drives and eliminates lubrication and re-tensioning to reduce maintenance and labor
- 30% increase in horsepower ratings compared to traditional timing belts
- Gates® Twin Power® belts have nylon facing on both tooth surfaces providing equal load carrying capabilities on either side of the belt
- Belt capacity is equal to standard single sided PowerGrip® HTD® belts
-
Alternative Part Number92520550
-
UNSPSC26111811
-
Package DescriptionEACH
-
Standards/ApprovalsRMA Standard
-
WarrantyLimited
-
