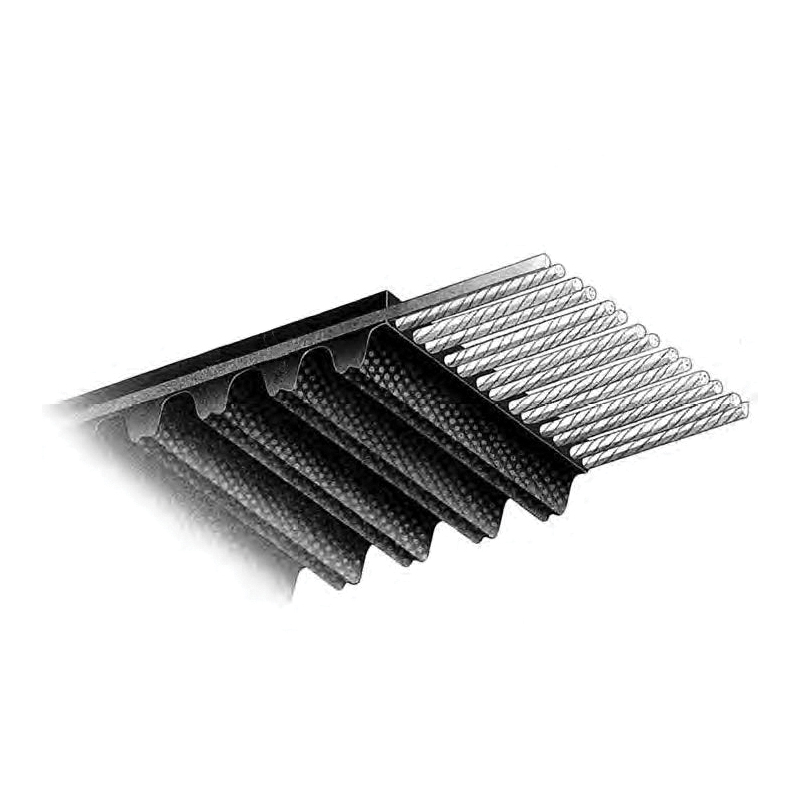

TB Wood's® 8905M15 Single Sided Synchronous Plus Belt, 178 Teeth, 5 mm Pitch, 890 mm OAL, 15 mm W, Neoprene
TB Wood's® synchronous Plus synchronous drives offer the added flexibility of a dual sprocket design that features both metric and standard-tapped holes coupled with a high-capacity synchronous Plus belt. As a result, the synchronous Plus drive offers a significantly higher horsepower rating at the standard industry price.
-
BrandTB Wood's®
-
UPC698672605335
-
Manufacturer Part Number8905M15
-
CountryUSA
-
Pitch5 mm
-
Temperature Range-30 to 180 deg F
-
MaterialNeoprene
-
Tooth ProfileCurved
-
Reinforced MaterialFiberglass
-
ColorBlack
-
TypeSingle Sided
-
Width15 mm
-
Number of Teeth178
-
Overall Length890 mm
- Delivers 50% more HP capacity than standard construction high torque drives
- Allows for use of smaller, lighter weight sprockets
- Provides a more economical solution than standard high torque
- Tensile members helically wound, "EXTRA STRONG" fiberglass cords are chemically treated and designed to assure superior length stability, maximum flexibility, and high tensile strength for shock loads
- Teeth and backing teeth are molded integrally with the backing that protects the tensile members, both are manufactured from premium quality, synthetic, neoprene rubber that provides exceptional resistance to heat, oil, ozone, and flex-fatigue
- Precise tooth formation and accurate spacing permit smooth, uniform transmission of power with resistance to tooth jump and shear
- Wear jacket the self-lubricating, nylon cover fabric construction is the key to the belts outstanding horsepower and torque rating, it not only assures maximum drive efficiency but provides exceptional resistance to tooth wear and shear from friction
-
UNSPSC26111811
-
Standards/ApprovalsISO Certified|PROP65: This product contains chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm
-
