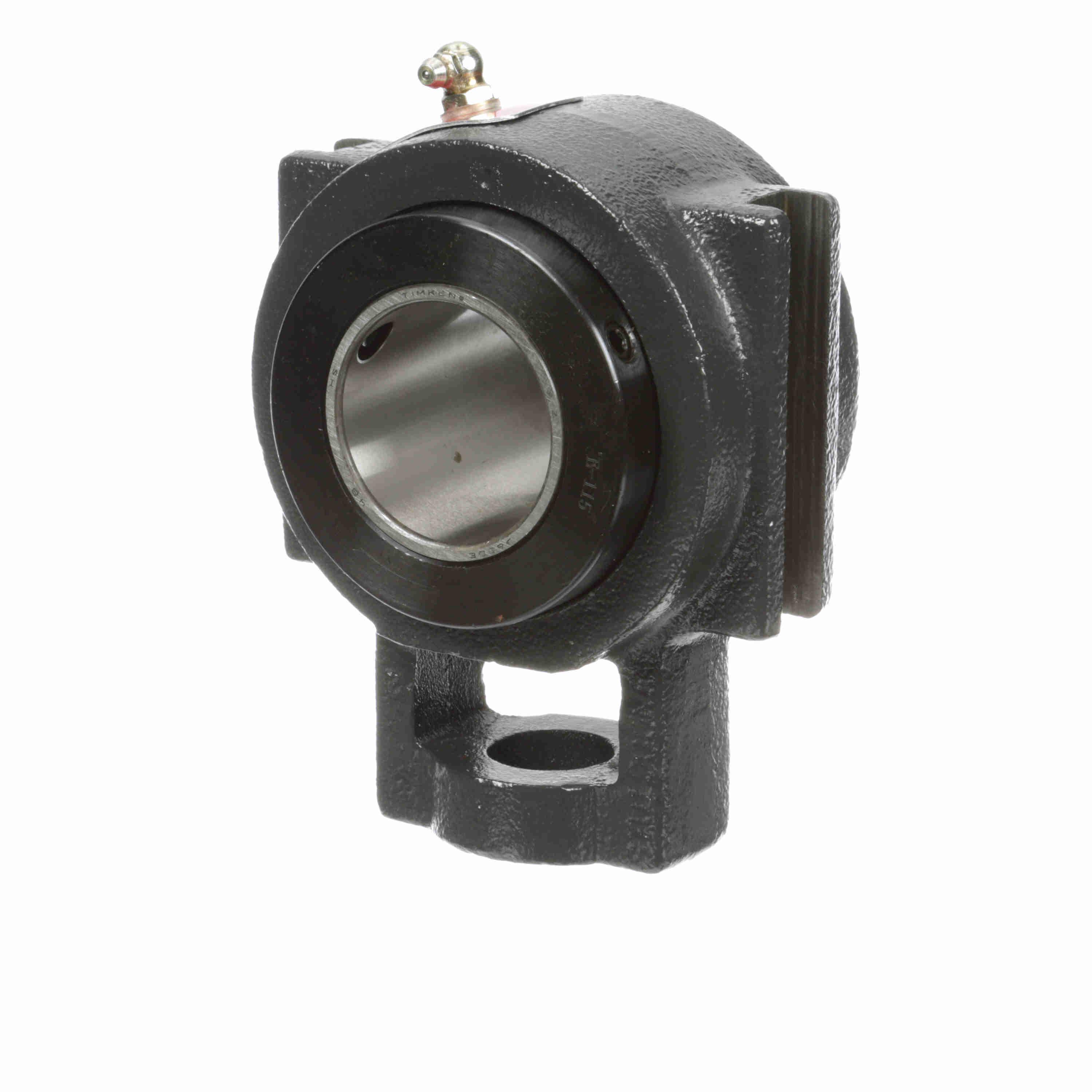

Browning® 730043 E920 Non-Expansion Take-Up Roller Bearing Unit, 2 in Dia Bore, 6-3/16 in L x 3-1/2 in W x 4-3/4 in H, 8070 lb Dynamic Load
Browning® 920 series mounted tapered roller bearings feature 1-piece durable cast iron non-expansion housings with Type E mounting dimensions and limited misalignment. The E920 series contains setscrew locking collars for easy installation and contact face riding seals to provide a good balance between contaminant entry, grease retention and friction. Depending on your application requirements, these bearings are available in a wide variety of bore sizes and housing configurations.
-
BrandBrowning®
-
UPC662289456956
-
Manufacturer Part Number730043
-
CountryUSA
-
Load Capacity8070 lb Dynamic
-
Temperature Rating-20 to 200 deg F
-
FinishUncoated
-
TypeNon-Expansion
-
Height4-3/4 in
-
Width3-1/2 in
-
SeriesE920
-
Bearing MaterialSteel
-
Length6-3/16 in
-
Bore Diameter2 in
-
Suitable For Use WithTUE Take Up Frames
- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Single lip contact face-riding seals rotate with the shaft
- Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 2-bolt cast iron housing
- Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 2-bolt cast iron housing
- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading_x005f Single lip contact face-riding seals rotate with the shaft_x005f Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews_x005f Powder coat epoxy 2-bolt cast iron housing
-
Alternative Part NumberTUE920X2
-
UNSPSC31171533
-
Package DescriptionEACH
-
