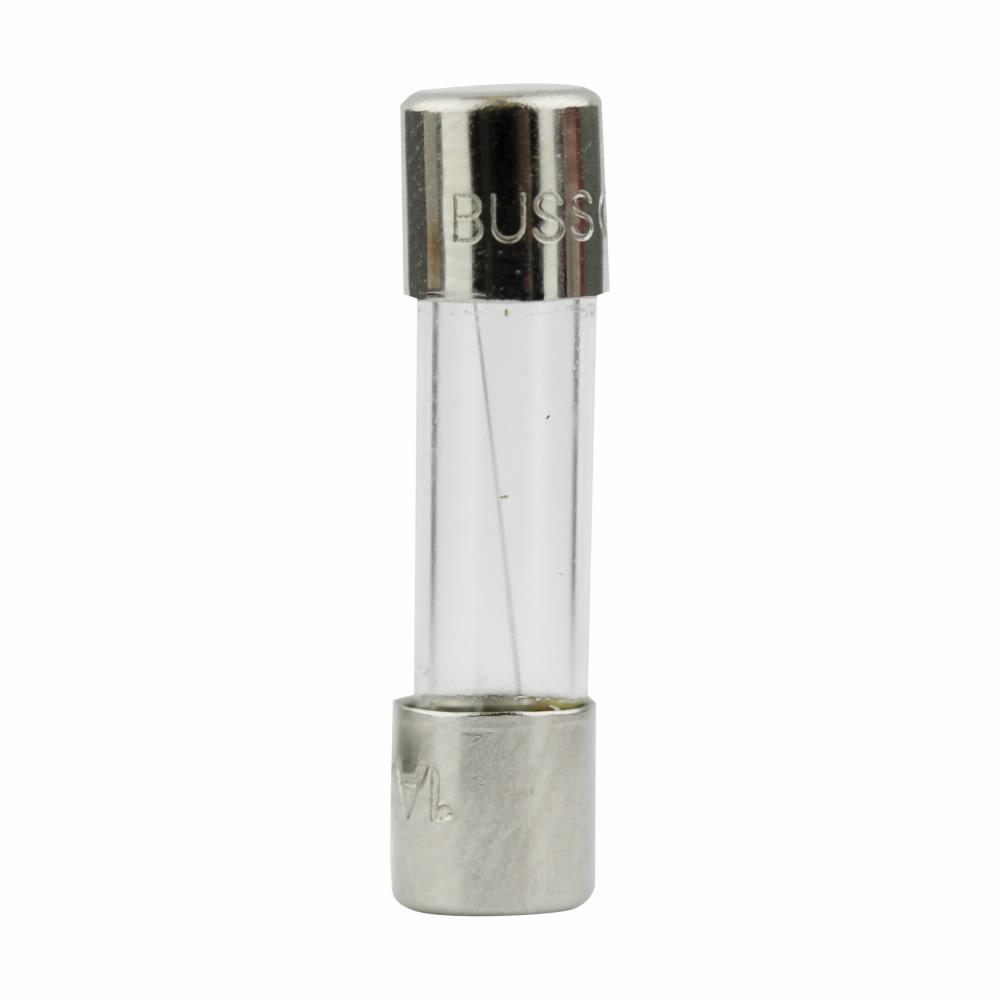

Bussmann GMA-2-R Small Dimension Fast Acting Fuse, 2 A, 250 V AC/32 V DC, 100 A Interrupt, Cylindrical Body
Bussmann GMA-2-R Small Dimension Fast Acting Fuse, 2 A, 250 VAC, 32 VDC, 100 A Interrupt, Cylindrical Body
-
BrandBussmann
-
UPC051712647892
-
Manufacturer Part NumberGMA-2-R
-
CountryCanada
-
Terminal TypeFerrule
-
MaterialGlass
-
Rejection/Non-RejectionNon-Rejection
-
Response Time60 min, 2 min
-
TypeSmall Dimension
-
Mounting TypeClip/Holder
-
Voltage Rating250 V AC/32 V DC
-
Amperage Rating2 A
-
SeriesGMA
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating100 A
-
Body Size5 mm Dia x 20 mm L
-
Body TypeCylindrical
-
ElementSingle
- Fast acting for maximum protection
- Low breaking capacity
- Nickel plated brass end caps
- 60 min maximum at 135% of ampere rating, 2 min maximum at 200% of ampere rating response time
- 10 kA at 125 VAC, 100 A at 250 VAC interrupt rating
-
Alternative Part Number9490461
-
UNSPSC39121607
-
IDEA Index ID9490461
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS 2002/95/EC|UL 248-14, Guide JDYX, File No. E19180|CSA Class 1422-01, File No. 53787|PSE Approved|CE Certified
-
