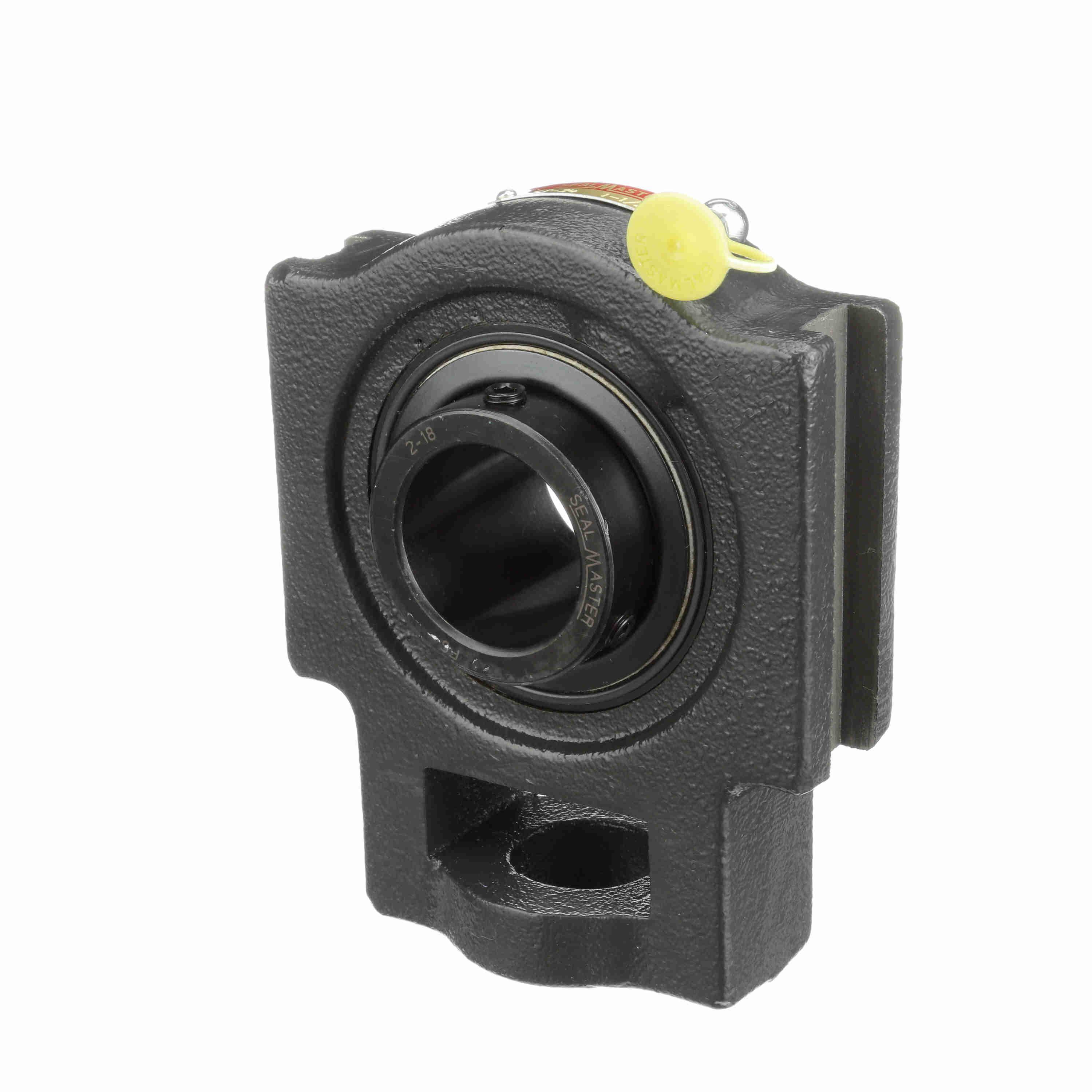

Sealmaster® 700741 ST Series Non-Expansion Standard Duty Take-Up Ball Bearing Unit, 1-1/2 in Dia Bore, 5-11/16 in L x 2-1/8 in W x 4-1/2 in H, 7340 lb Dynamic Load
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing and lubrication options or industry specific solutions.
-
BrandSealmaster®
-
UPC662461006207
-
Manufacturer Part Number700741
-
CountryUSA
-
Load Capacity7340 lb Dynamic
-
Temperature Rating-20 to 220 deg F
-
FinishUncoated
-
TypeNon-Expansion Standard Duty
-
Height4-1/2 in
-
Width2-1/8 in
-
SeriesST Series
-
Bearing MaterialSteel
-
Length5-11/16 in
-
Bore Diameter1-1/2 in
-
Suitable For Use WithSTH-24 Center Pull Take Up Frames
- Sealmaster® has the industry's widest outer ring, the black oxided outer ring is 20 to 30% wider than industry standard outer rings
- 120 deg spaced, balanced 3-point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- The Sealmaster® unique land riding metal retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
- Solid housing base
- Take up housing type
- Seal flinger
- The Sealmaster® exclusive locking pin and dimple system provides a direct lubricant path into the bearing cavity and ball path instead of around a lubrication groove
- The standard felt seal provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
- Sealmaster® incorporates a unique heat treat process that hardens the inner race only where it is needed under the ball path
-
Alternative Part NumberST-24
-
UNSPSC31171533
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
