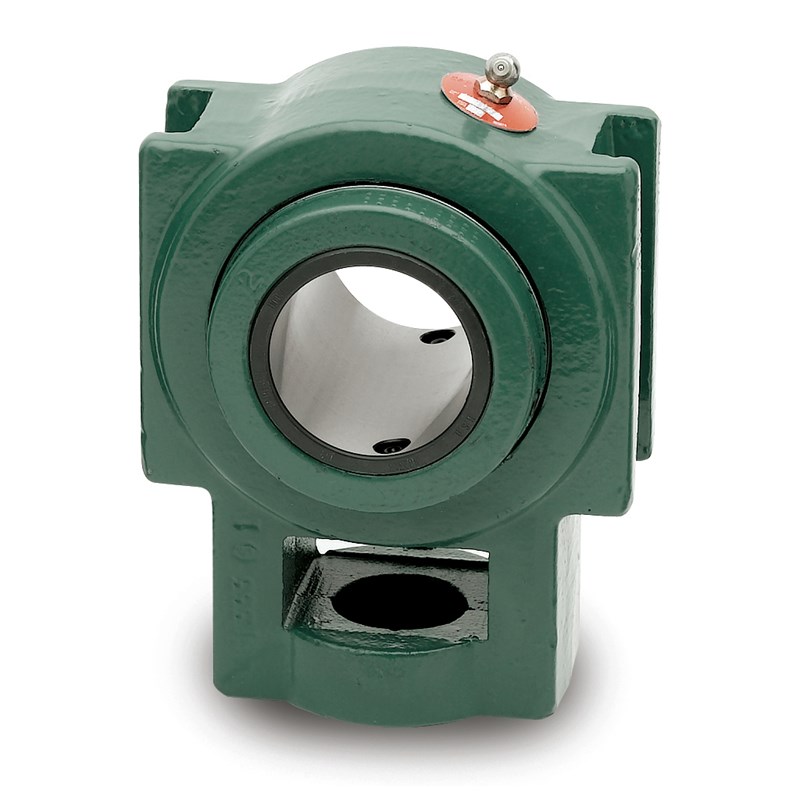

Dodge® 070765 Non-Expansion Type S-2000 Wide Slot Take-Up Spherical Roller Bearing, 2-15/16 in Dia Bore, 8.88 in L x 3-3/4 in W x 6.69 in H, 41500 lb Dynamic/53000 lb Static Load
These unit-housed, double-row spherical, mounted bearings have high ratings and long L10 lives. A variety of housing styles and sealing options allow for easy application on material and air handling machinery. Industry standard dimensions make the products interchangeable with many brands.
-
BrandDodge®
-
UPC782475307234
-
Manufacturer Part Number070765
-
CountryUSA
-
Load Capacity41500 lb Dynamic/53000 lb Static
-
Temperature Rating-20 to 200 deg F
-
FinishUncoated
-
TypeNon-Expansion Type S-2000 Wide Slot
-
Height6.69 in
-
Width3-3/4 in
-
Length8.88 in
-
Bore Diameter2-15/16 in
-
Suitable For Use WithCP515 Center Pull Take-Up Frames
- Larger rollers
- More contact area
- Case-carburized inner rings resist cracking
- Static or dynamic misalignment up to +/-1 deg
- Expansion capability up to 3/8 in
- Easy installation
- Extended life bearings
- Single snap ring movable for expansion
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100941039 |
| Motion Industries | 00570197 |
-
Alternative Part NumberWSTU-S2-215R
-
UNSPSC31171510
-
Package DescriptionEACH
-
WarrantyLimited
-
Catalog
-
Specification Sheet
-
Line Drawing
-
Warranty Information
