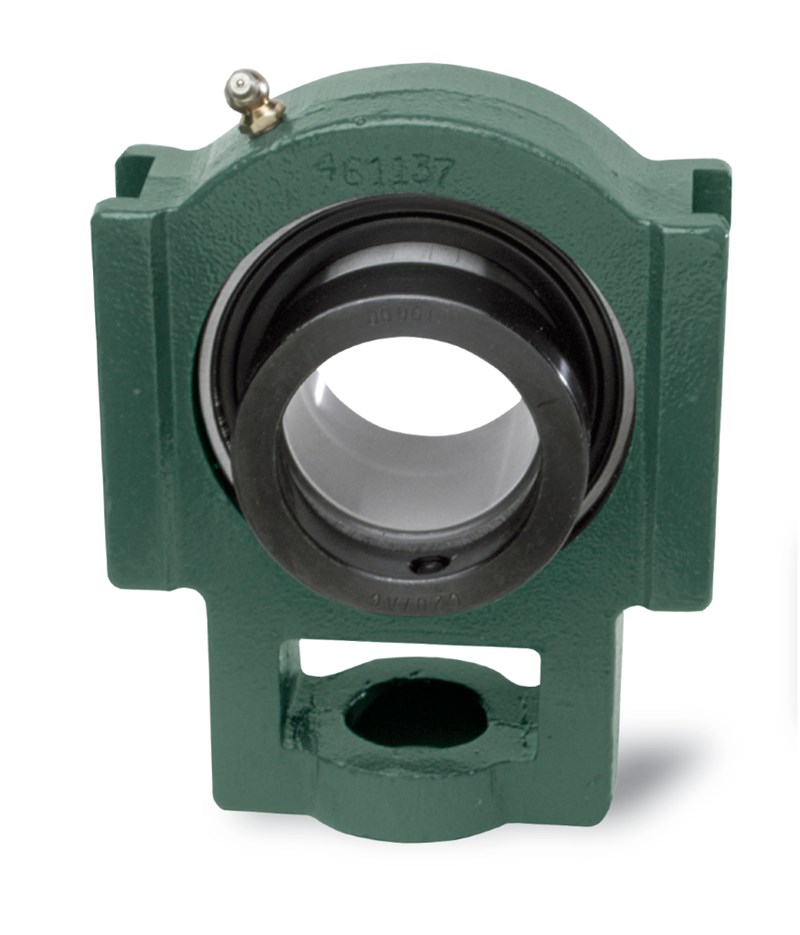

Dodge® 131166 207 Narrow Slot Non-Expansion Normal Duty Single Lip Take-Up Eccentric Collar Ball Bearing, 1-7/16 in Dia Bore, 4-1/2 in L x 1.95 in W x 4.13 in H, 5759 lb Dynamic/3461 lb Static Load
For more than 70 years, Dodge® has been talking to mounted bearing users and listening to their needs. This experience led to design of the optimum mounted ball bearings. The result is the Dodge® SXR line, the most current eccentric collar mounted ball bearing design on the market, provides the user unmatched quality and true total value.
-
BrandDodge®
-
UPC782475117246
-
Manufacturer Part Number131166
-
CountryUSA
-
Load Capacity5759 lb Dynamic/3461 lb Static
-
FinishPowder Coated
-
TypeNarrow Slot Non-Expansion Normal Duty Single Lip
-
Height4.13 in
-
Width1.95 in
-
Series207
-
Bearing MaterialSteel
-
Length4-1/2 in
-
Bore Diameter1-7/16 in
-
Suitable For Use WithNS308 Narrow Slot Take-Up Frames
- Precision-hardened inner ring
- Normal duty wide inner ring
- Eccentric collar locking system
- Dual guard land-riding, positive contact seal
- Stronger and flexible ball cage
- Simplified anti-rotation device
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100939982 |
| Motion Industries | 00567410 |
-
Alternative Part NumberNSTU-SXR-107
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
Catalog
-
Owners/User Manual
-
Instruction/Installation Manual
-
Specification Sheet
-
Warranty Information
