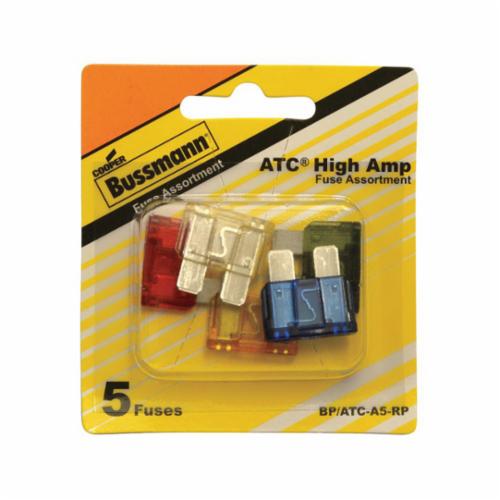

Bussmann ATC-A5-RP Non-Indicating Fuse Assortment, 1 kA at 32 VDC, Plastic
Bussmann ATC-A5-RP Non-Indicating Fuse Assortment, 1 kA at 32 VDC, Plastic
-
BrandBussmann
-
UPC051712242073
-
Manufacturer Part NumberATC-A5-RP
-
CountryUSA
-
MaterialPlastic
-
TypeNon-Indicating
-
SeriesATC
-
Dimensions3/4 in L x 3/4 in W x 7/32 in D
-
Specifications1 kA at 32 VDC
- Tin-plated zinc terminals and element, polycarbonate housing materials
- Mount with fuse clip or holder
- Industry standard color coding for quick identification of amp rating
- Lead free, halogen free
- Test points on specific part/package numbers may speed up circuit troubleshooting
- -40 to 100 deg C, 95 % RH non-condensing is operating temperature
- -5 to 35 deg C or lower, 85 % RH non-condensing is storage temperature
-
UNSPSC39121617
-
Standards/ApprovalsUL recognized file E56412|guide JFHR2|UL 248-1 (1-40A)|ISO 8820-3/SAE J1284/JASO 612 (1-40A)|SAE J1171|RoHS compliant
