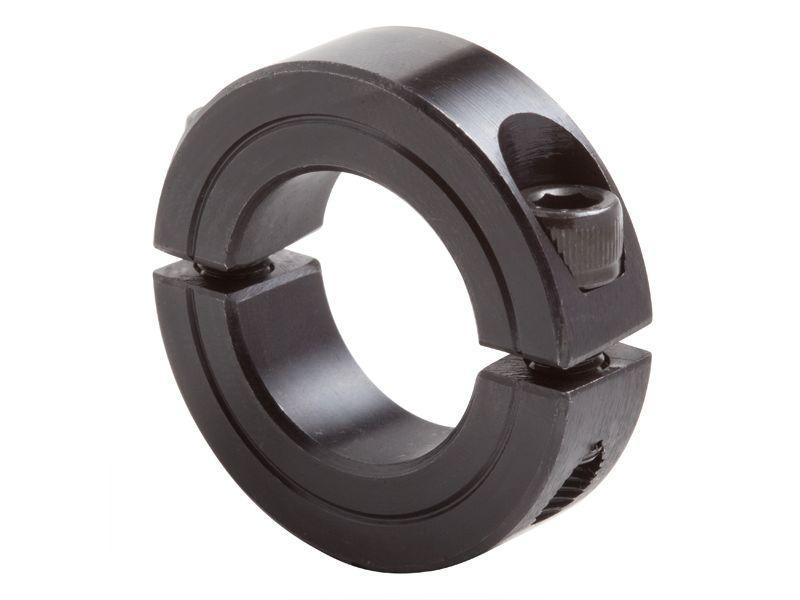

ASP-300-2-S Industry Standard Clamping Collar, 2-Piece Construction, 3 in ID x 4-1/4 in OD x 7/8 in W, Steel
Black Oxide Plated Steel Two-Piece Clamping Collar. Design fully engages the shaft without marring. Easily installed where major disassembly would otherwise be required. Greater axial holding power than set screw or one-piece clamping collars. Effective on hard & soft shafts.
-
BrandClimax
-
UPC044861630945
-
Manufacturer Part NumberG2SC-300-B
-
CountryUSA
-
FinishBlack Oxide
-
MaterialSteel
-
TypeIndustry Standard
-
Construction2-Piece
-
Screw Size3/8-24 UN-3A x 1 in
-
Width7/8 in
-
SeriesG2SC
-
Inside Diameter3 in
-
Outside Diameter4-1/4 in
- Easily installed where major disassembly would otherwise be required
- Greater axial holding power than setscrew or 1-piece clamping collars
- Effective on hard and soft shafts
- Without recessed screw
- Design fully engages the shaft without marring
-
UNSPSC31162811
-
Package DescriptionEACH
-
Standards/ApprovalsASTM A108|ASTM A574 Cap Screw
-
Specification Sheet
-
Line Drawing
