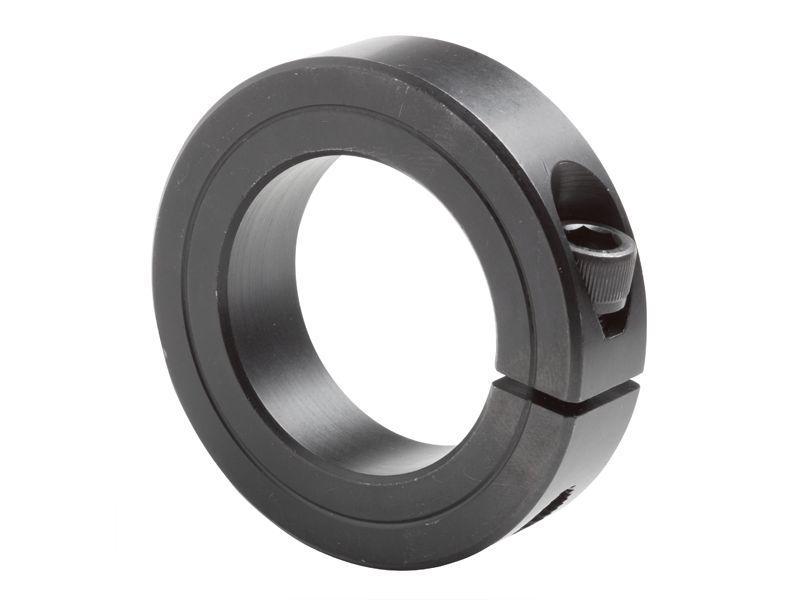

ASP-193-1-S Industry Standard Clamping Collar, 1-Piece Split Construction, 1-15/16 in ID x 3 in OD x 11/16 in W, Steel
Black Oxide Steel One-Piece Clamping Collar. Design fully engages the shaft without marring. Greater axial holding power than set screw collars. Effective on hard & soft shafts.
-
BrandClimax
-
UPC044861630549
-
Manufacturer Part NumberG1SC-193-B
-
CountryUSA
-
FinishBlack Oxide
-
MaterialSteel
-
TypeIndustry Standard
-
Construction1-Piece Split
-
Screw Size5/16-24 UN-3A x 1 in
-
Width11/16 in
-
SeriesG1SC
-
Inside Diameter1-15/16 in
-
Outside Diameter3 in
- Greater axial holding power than setscrew collars
- Effective on hard and soft shafts
- Without recessed screw
-
UNSPSC31162811
-
Package DescriptionEACH
-
Standards/ApprovalsASTM A108|ASTM A574 Cap Screw
-
Specification Sheet
-
Line Drawing
