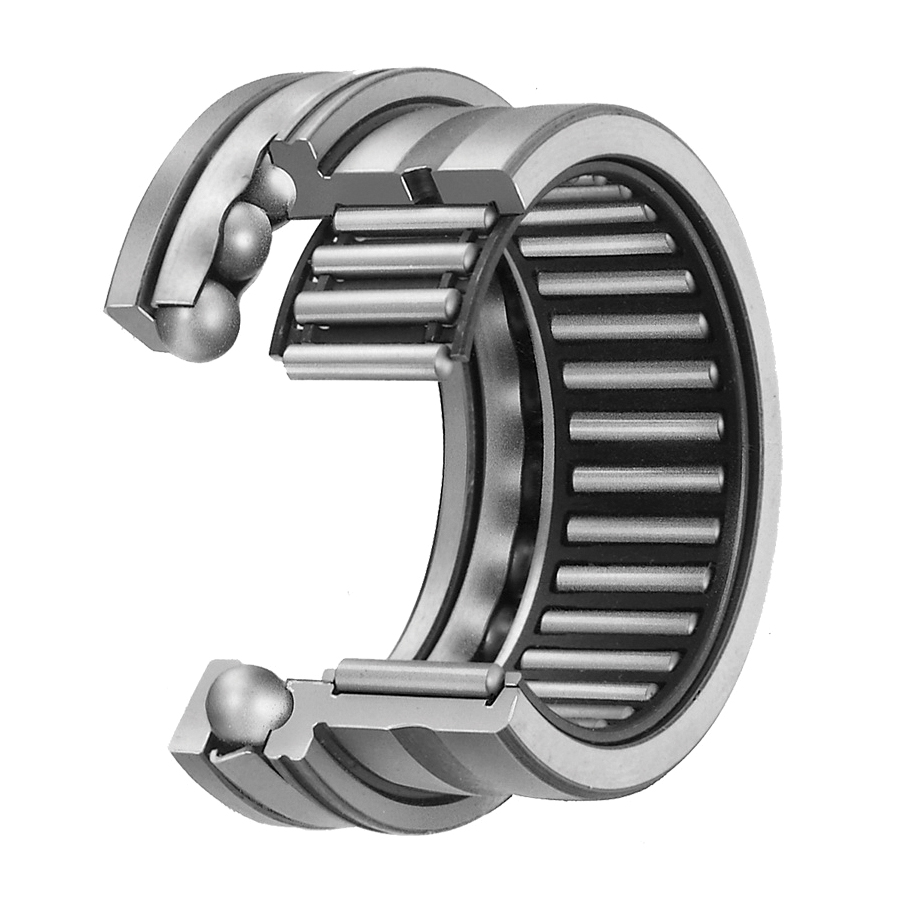

IKO NAX2530Z Combined Needle Roller Bearing With Thrust Ball Bearing and Dust Cover, 25 mm Dia Bore, 37 mm OD, 30 mm W, 20000 N Radial Dynamic/19600 N Axial Dynamic/32100 N Radial Static/29700 N Axial Static Load
IKO manufactures an economical series of Combined Needle Roller Bearings, comprised of both radial and thrust bearings. Caged needle roller bearings act as radial bearings, while thrust ball or roller bearings serve as thrust bearings. This series is available in four styles, including designs that incorporate thrust ball bearings, thrust roller bearings, angular contact ball bearings or three-point contact ball bearings. Applications include machine tools, textile equipment and industrial machinery. Needle roller bearings with thrust ball bearings are designed to handle thrust loads across a wide range of applications.
-
BrandIKO
-
Manufacturer Part NumberNAX2530Z
-
CountryUSA
-
Load Capacity20000 N Radial Dynamic/19600 N Axial Dynamic/32100 N Radial Static/29700 N Axial Static
-
Maximum Speed7000 rpm
-
Width30 mm
-
SeriesNAX
-
Outside Diameter37 mm
-
Bore Diameter25 mm
- Dust cover is made of a thin steel plate and fixed to a groove on the outer ring collar
- Without inner ring
-
UNSPSC31171512
-
