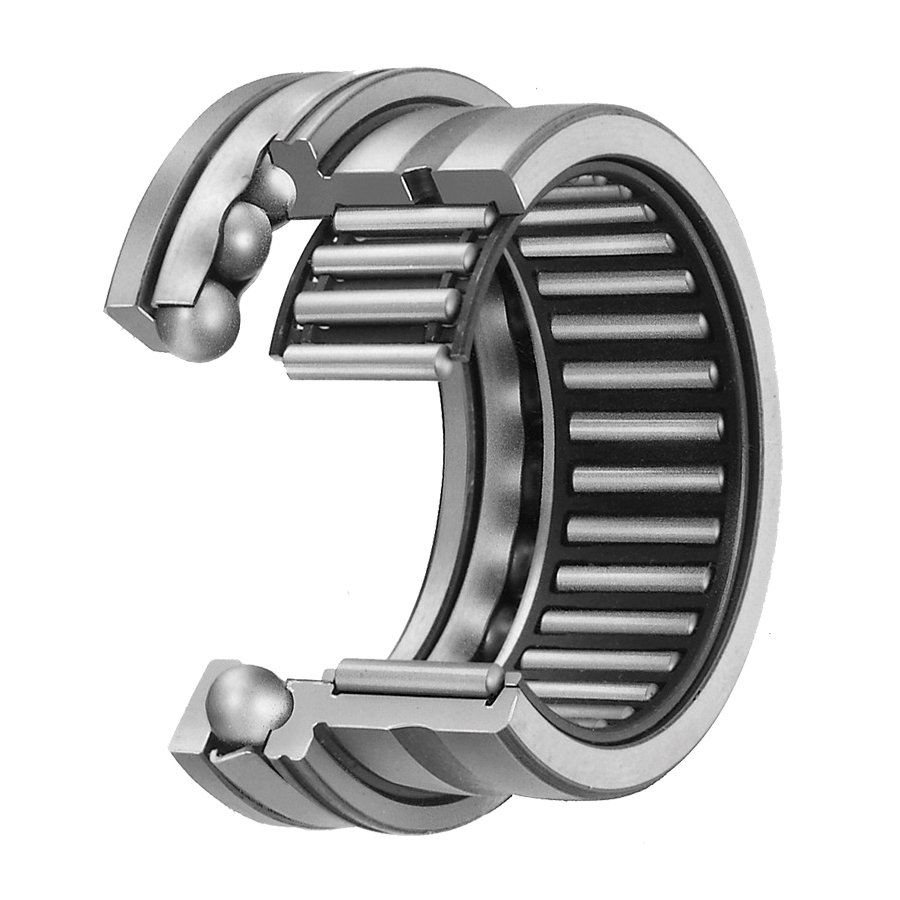

IKO Bearings 50-MM-ID BALL/NEEDLE BEARINGS IKO NAX-50-35-Z
IKO manufactures an economical series of Combined Needle Roller Bearings, comprised of both radial and thrust bearings. Caged needle roller bearings act as radial bearings, while thrust ball or roller bearings serve as thrust bearings. This series is available in four styles, including designs that incorporate thrust ball bearings, thrust roller bearings, angular contact ball bearings or three-point contact ball bearings. Applications include machine tools, textile equipment and industrial machinery. Needle roller bearings with thrust ball bearings are designed to handle thrust loads across a wide range of applications.
-
BrandIKO
-
Manufacturer Part NumberNAX5035Z
-
CountryUSA
-
Load Capacity42200 N Radial Dynamic/28800 N Axial Dynamic/83400 N Radial Static/60100 N Axial Static
-
Maximum Speed4500 rpm
-
Width35 mm
-
SeriesNAX
-
Outside Diameter62 mm
-
Bore Diameter50 mm
- Dust cover is made of a thin steel plate and fixed to a groove on the outer ring collar
- Without inner ring
-
UNSPSC31171512
-
