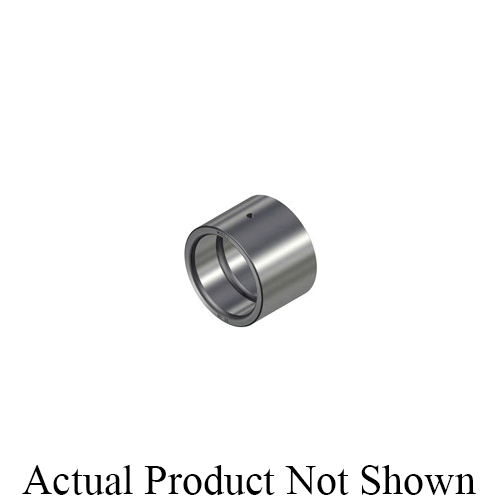

McGill® 0007230000 MI Series Narrow Machined Separable Inner Ring With Oil Hole and Annular Groove, 4-1/2 in ID x 5.4985 in OD, 2.515 in OAW, For Use With GUIDEROL® GR 88 N, CAGEROL® MR 88 N Bearing, Chrome Steel
Precision ground inner ring provides a hardened raceway for the rollers when used with an unhardened shaft. The ring contains an oil hole and annular groove for relubrication of the bearing and can be used with both CAGEROL® and GUIDEROL® bearings or can be utilized as a bushing in plain bearing applications.
-
BrandMcGill®
-
UPC726166000936
-
Manufacturer Part Number0007230000
-
CountryUSA
-
Lubrication Hole TypeLubrication Hole
-
MaterialChrome Steel
-
TypeNarrow
-
SeriesMI Series
-
Inside Diameter4-1/2 in
-
Outside Diameter5.4985 in
-
Bore TypeRound/Spherical
-
Overall Width2.515 in
-
Suitable For Use WithGUIDEROL® GR 88 N, CAGEROL® MR 88 N Bearing
- AMBA standard 18.2 precision rating
- Thru hardened precision ground rings construction
-
Alternative Part NumberMI 72 N
-
UNSPSC31171500
-
Catalog
-
Specification Sheet
