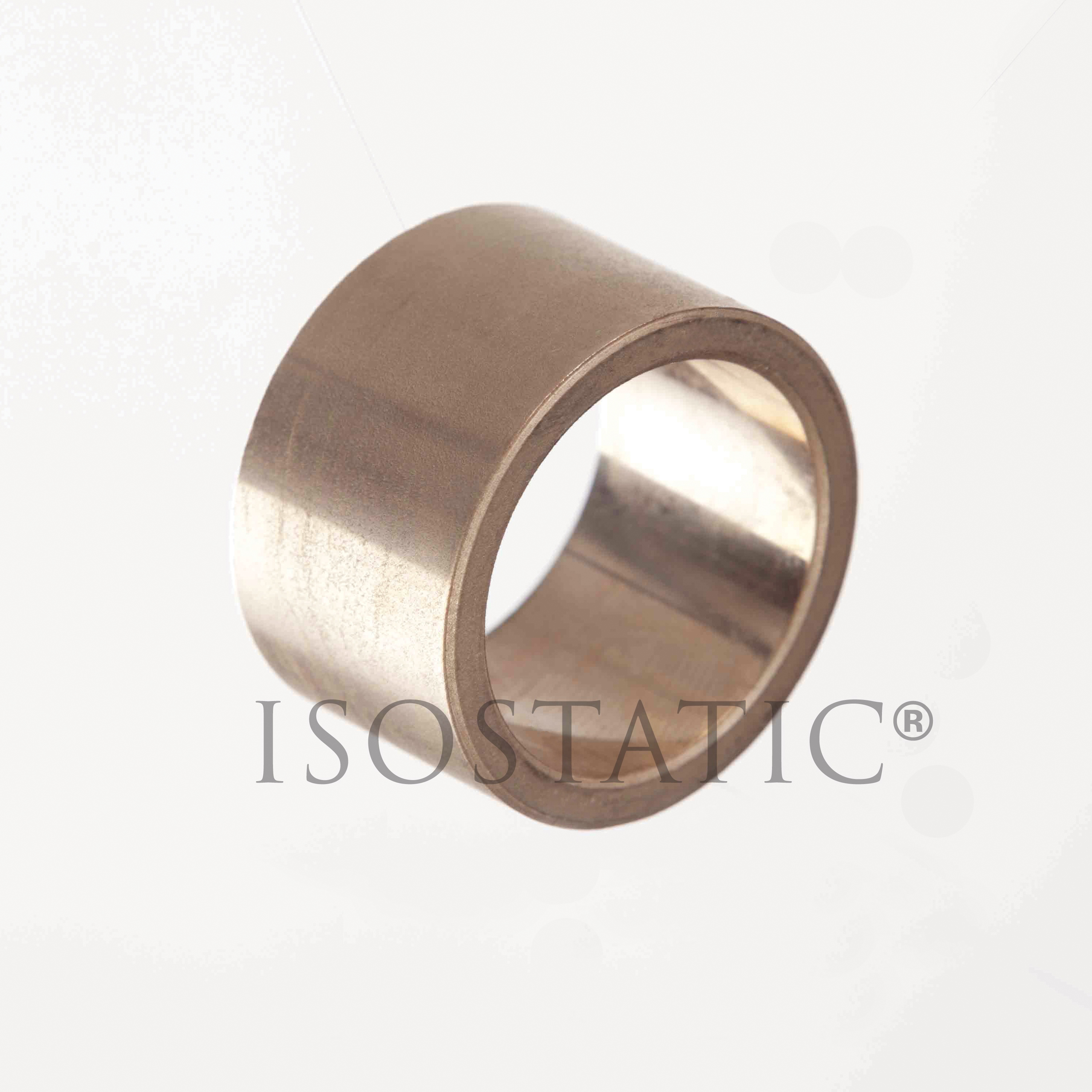

ISOSTATIC™ Century® 104034 Round Bore Sleeve Bearing, 3/8 in Dia Bore, 5/8 in OD, 3/4 in W
ISOSTATIC™ Century® 104034 Round Bore Sleeve Bearing, 3/8 in Dia Bore, 5/8 in OD, 3/4 in W
-
BrandISOSTATIC™
-
UPC846802013431
-
Manufacturer Part Number104034
-
CountryUSA
-
Temperature Rating-40 to 450 deg F
-
Maximum PV Rating75000 psi/sq-ft/min
-
Maximum Pressure3000 psi
-
Maximum Velocity750 sfpm
-
TypeRound Bore
-
Width3/4 in
-
Bearing MaterialSAE 660 Cast Bronze
-
Outside Diameter5/8 in
-
Bore Diameter3/8 in
- Standard stock products
- SAE 660/CA 932 copper 83%, tin 7%, lead 7% and zinc 3%
- Non-porous, highly dense grain structure for long life
- Offers good hardness, strength and wear resistance, excellent anti-frictional characteristics
- Tensile strength of 35000 psi, yield strength of 27000 psi and brinell hardness of 72
- Ideal for heavy loads at moderate speeds or light loads at high speeds
- Products made with excess material to finish to stated nominal dimensions
-
Alternative Part NumberCB-0610-06
-
UNSPSC31171509
-
Package Description1/PK
-
Standards/ApprovalsASTM B505|QOC-390B Type III B144-52-3B|REACH Compliant|PROP65: This product can expose you to chemicals including lead which is known to the state of California to cause birth defects or other reproductive harm. For more information go to www.P65WARNINGS.ca.gov
-
