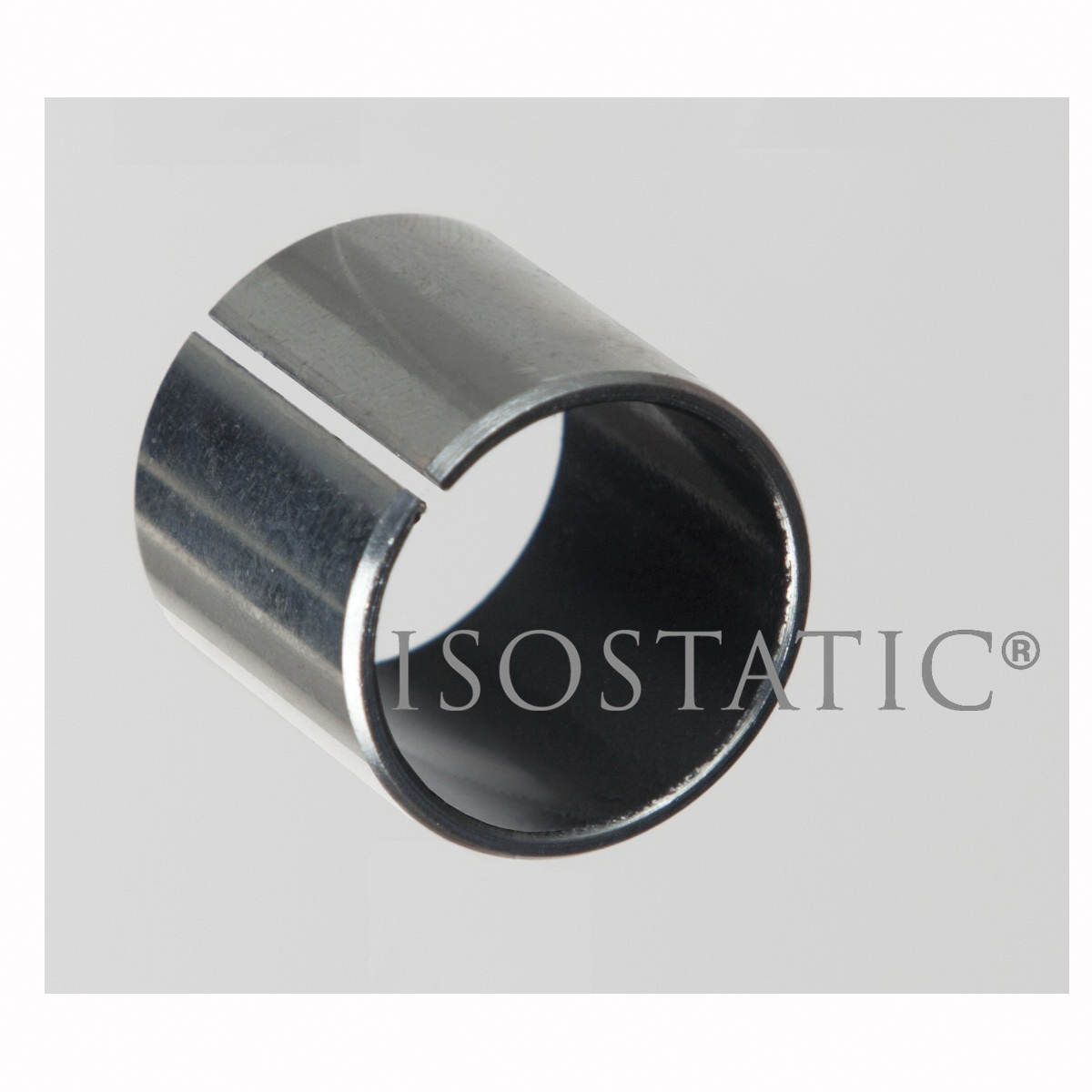

ISOSTATIC™ TU® 501022 Round Bore Sleeve Bearing, 1/2 in Dia Bore, 19/32 in OD, 1/2 in W
ISOSTATIC™ TU® 501022 Round Bore Sleeve Bearing, 1/2 in Dia Bore, 19/32 in OD, 1/2 in W
-
BrandISOSTATIC™
-
UPC846802052867
-
Manufacturer Part Number501022
-
CountryUSA
-
Temperature Rating-328 to 536 deg F
-
Maximum PV Rating102000 psi/sq-ft/min
-
Maximum Pressure36250 psi
-
Maximum Velocity1900 sfpm
-
TypeRound Bore
-
Width1/2 in
-
Bearing MaterialSteel-Backed PTFE Lined
-
Outside Diameter19/32 in
-
Bore Diameter1/2 in
- Standard stock products
- Self-lubricating dry sliding bearing
- A steel-backed composite material comprised of low carbon steel backing for extremely high load capacity, sintered bronze offers optimal heat dispersion, PTFE-lead sliding surface creates a low friction coefficient and allows for a wide temperature range
- Can be used where many liquid lubricants fail, also performs well with lubrication
- Ideal for heavy loads at moderate speeds or light loads at high speeds
-
Alternative Part Number08TU08
-
UNSPSC31171509
-
Package Description1/PK
-
Standards/ApprovalsREACH|DFARS Compliant|PROP65: This product can expose you to chemicals including lead which is known to the state of California to cause birth defects or other reproductive harm. For more information go to www.P65WARNINGS.ca.gov
-
Specification Sheet
-
Catalog
