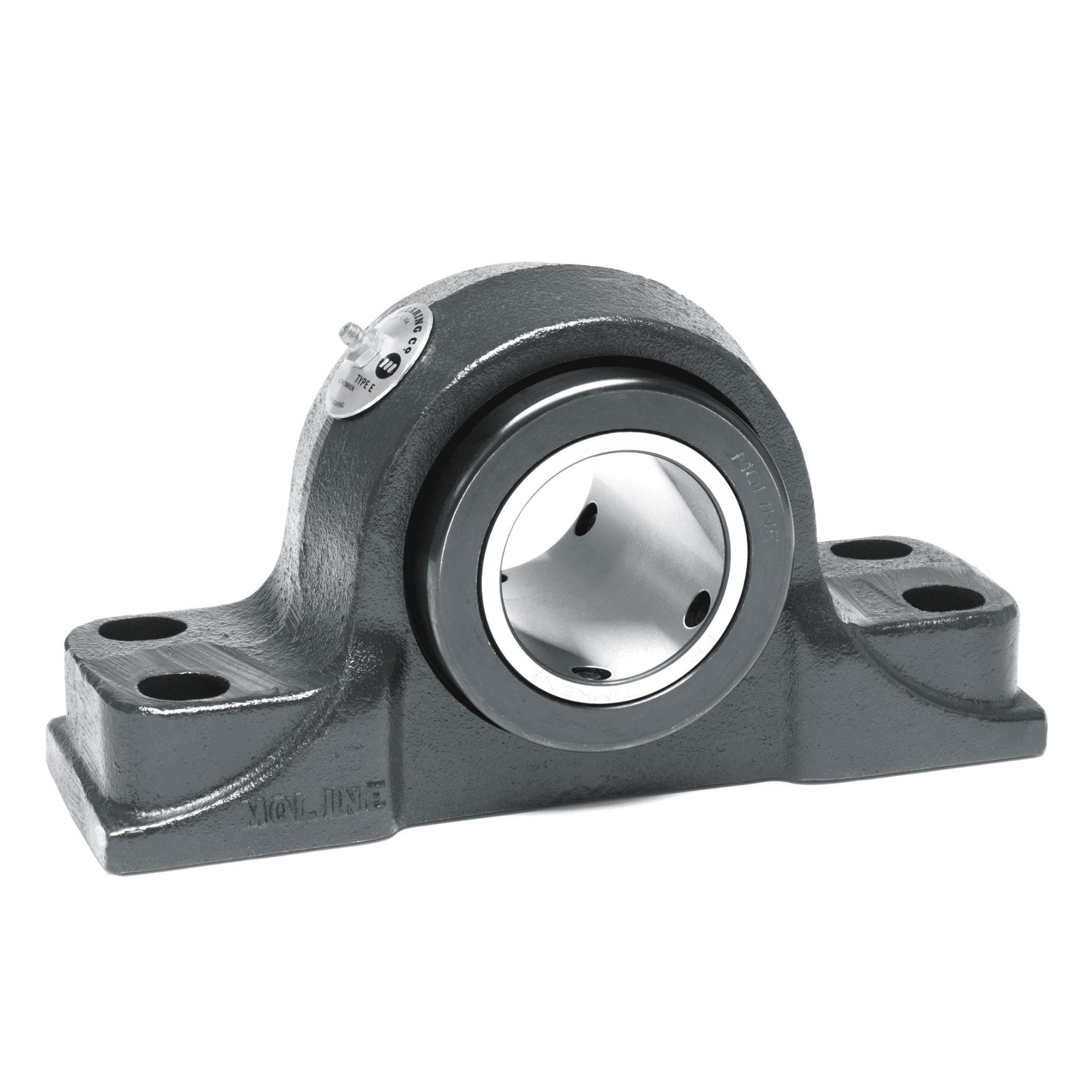

Moline Bearing 19321211 Type E Pillow Block Bearing, 2-11/16 in Dia Bore, 8-13/16 in L Bolt Center-to-Center, 3-1/8 in Base to Bore Centerline, 12 in OAL x 6-5/16 in OAH
Made of Cast Iron, this Solid Type E 2-Bolt Pillow Block is a Non-Expansion Mounted Roller Bearing Bearing with a 2 11⁄16 in (2.6875 in) shaft size. Includes a Steel Set Screw Locking Insert with a Double Collar, an available Standard V-Guard Contact Seal made of Nitrile, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
-
BrandMoline Bearing
-
Manufacturer Part Number19321211
-
CountryUSA
-
TypeType E
-
Mounting Type2-Bolt
-
Base Width3 in
-
Base to Bore Centerline3-1/8 in
-
Bolt Center-to-Center Length8-13/16 in
-
Bore Diameter2-11/16 in
-
Overall Height6-5/16 in
-
Overall Length12 in
-
Overall Width4-1/2 in
-
Package DescriptionEACH
