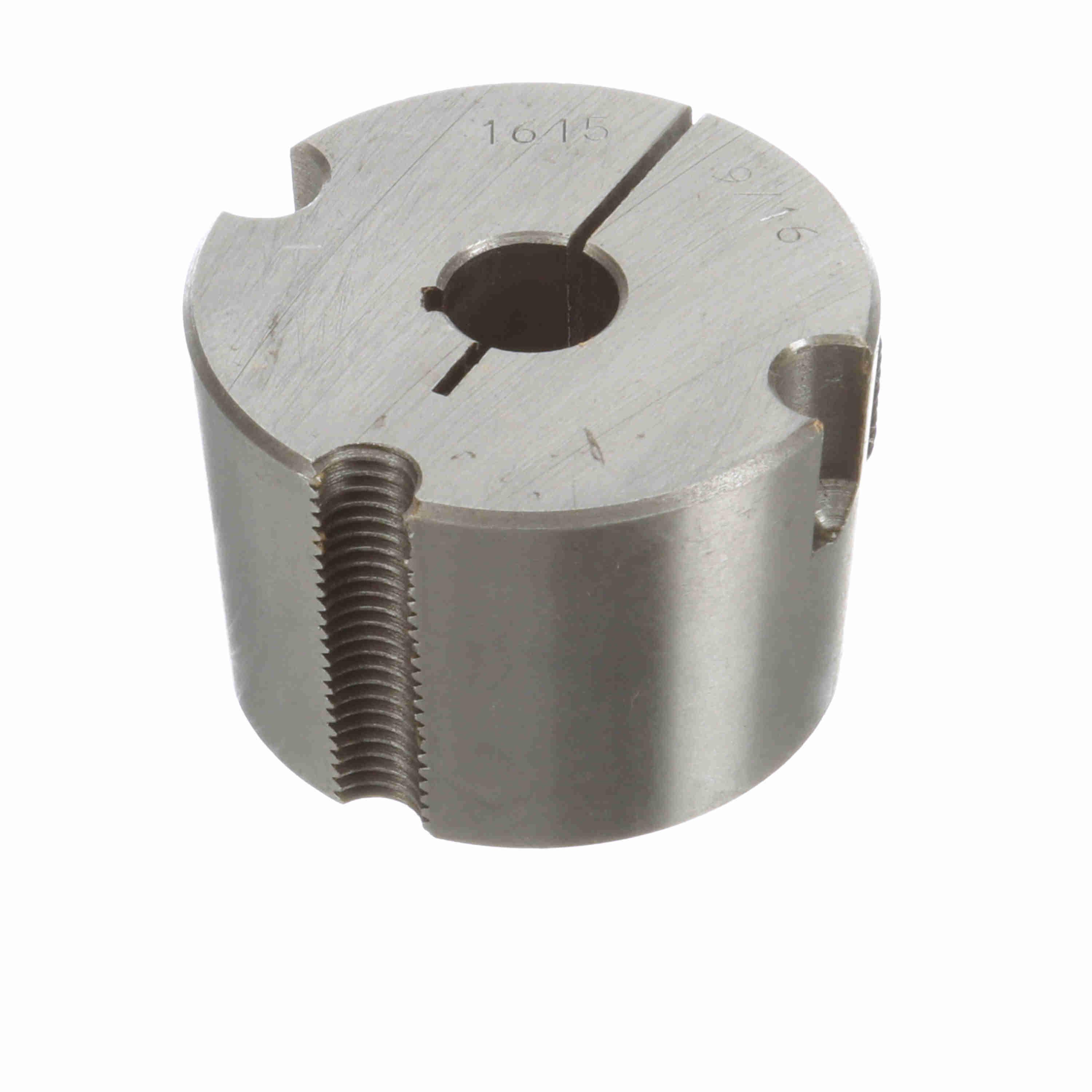

Browning® 3749199 Taper Lock Bushing, 1-9/16 in Dia Bore, 2-1/4 in Dia Barrel, 1-1/2 in OAL, Steel
Browning® 3749199 Taper Lock Bushing, 1-9/16 in Dia Bore, 2-1/4 in Dia Barrel, 1-1/2 in OAL, Steel
-
BrandBrowning®
-
UPC662289613137
-
Manufacturer Part Number3749199
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating4300 in-lb
-
Screw Size3/8 x 5/8 in
-
Number of Bolt Holes2
-
Barrel Diameter2-1/4 in
-
Keyway Size3/8 x 3/16 in
-
Bolt Circle Diameter2-1/8 in
-
Bore Diameter1-9/16 in
-
Overall Length1-1/2 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
-
Alternative Part Number1615X 1 9/16
-
UNSPSC31163205
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
-
Catalog
