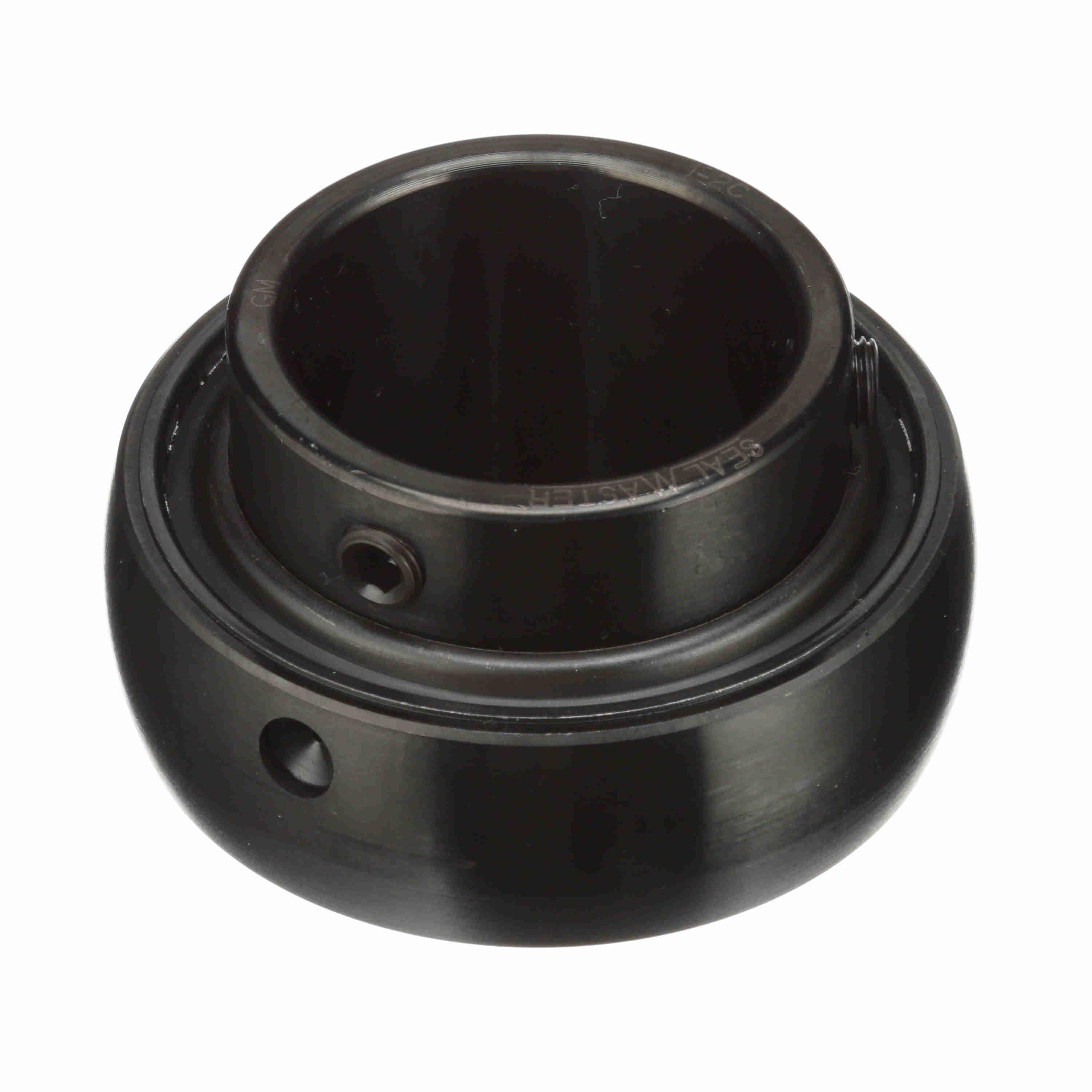

Sealmaster 1-1/4"-ID SPH/OD INSERT BEARINGS SEA 1-14
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461019429
-
Manufacturer Part Number703070
-
CountryUSA
-
Load Capacity7889 lb Dynamic/5216 lb Static
-
Cage MaterialBrass
-
Temperature Rating-20 to 220 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed3550 rpm
-
Closure TypeDouble Seal
-
TypeNon-Expansion Standard-Duty Straight Bore
-
Seal MaterialNitrile Rubber
-
Width2-1/32 in
-
Bearing MaterialSteel
-
Outside Diameter3.5433 in
-
Bore Diameter2 in
- Wide outer ring
- Lock pin and dimple system
- Single lip contact seal consists of a nitrile rubber washer in metal shroud to shield the lip from large contaminants
- Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- Zone hardened inner race
- Land riding retainer
- Lithium complex NLGI #2 grease with an EP additive
-
Alternative Part Number1-2C
-
UNSPSC31171537
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Specification Sheet
