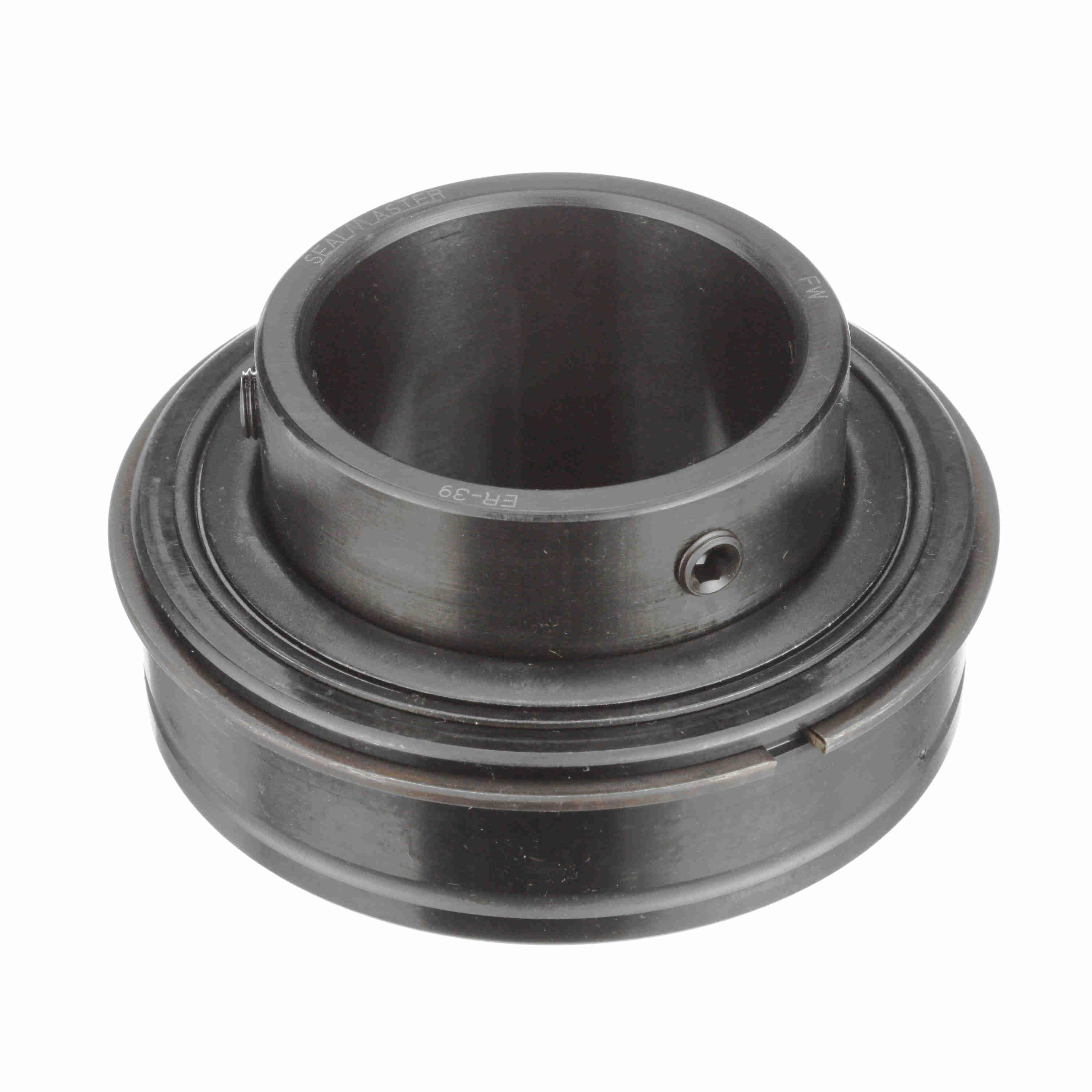

Sealmaster® 701086 ER Series Non-Expansion Standard-Duty Straight Bore Ball Bearing Insert With Snap Ring, 2-7/16 in Dia Bore, 4.3307 in OD, 1 Rows, 2-9/16 in W, 11789 lb Dynamic/8150 lb Static Load
Sealmaster® gold ER bearings feature a cylindrical OD and snap ring for easy installation in a roll assembly. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461008843
-
Manufacturer Part Number701086
-
CountryUSA
-
Load Capacity11789 lb Dynamic/8150 lb Static
-
Cage MaterialBrass
-
Temperature Rating-20 to 220 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed3000 rpm
-
Closure TypeDouble Seal
-
TypeNon-Expansion Standard-Duty Straight Bore
-
Seal MaterialFelt
-
Width2-9/16 in
-
SeriesER Series
-
Number of Rows1
-
Bearing MaterialSteel
-
Outside Diameter4.3307 in
-
Bore Diameter2-7/16 in
- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Lithium complex NLGI #2 grease with an EP additive
- ER style cylindrical OD bearing with snap and with black oxided bearing rings_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Felt labyrinth seal and flinger for dry and dusty environment_x005f Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
-
Alternative Part NumberER-39
-
UNSPSC31171537
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
