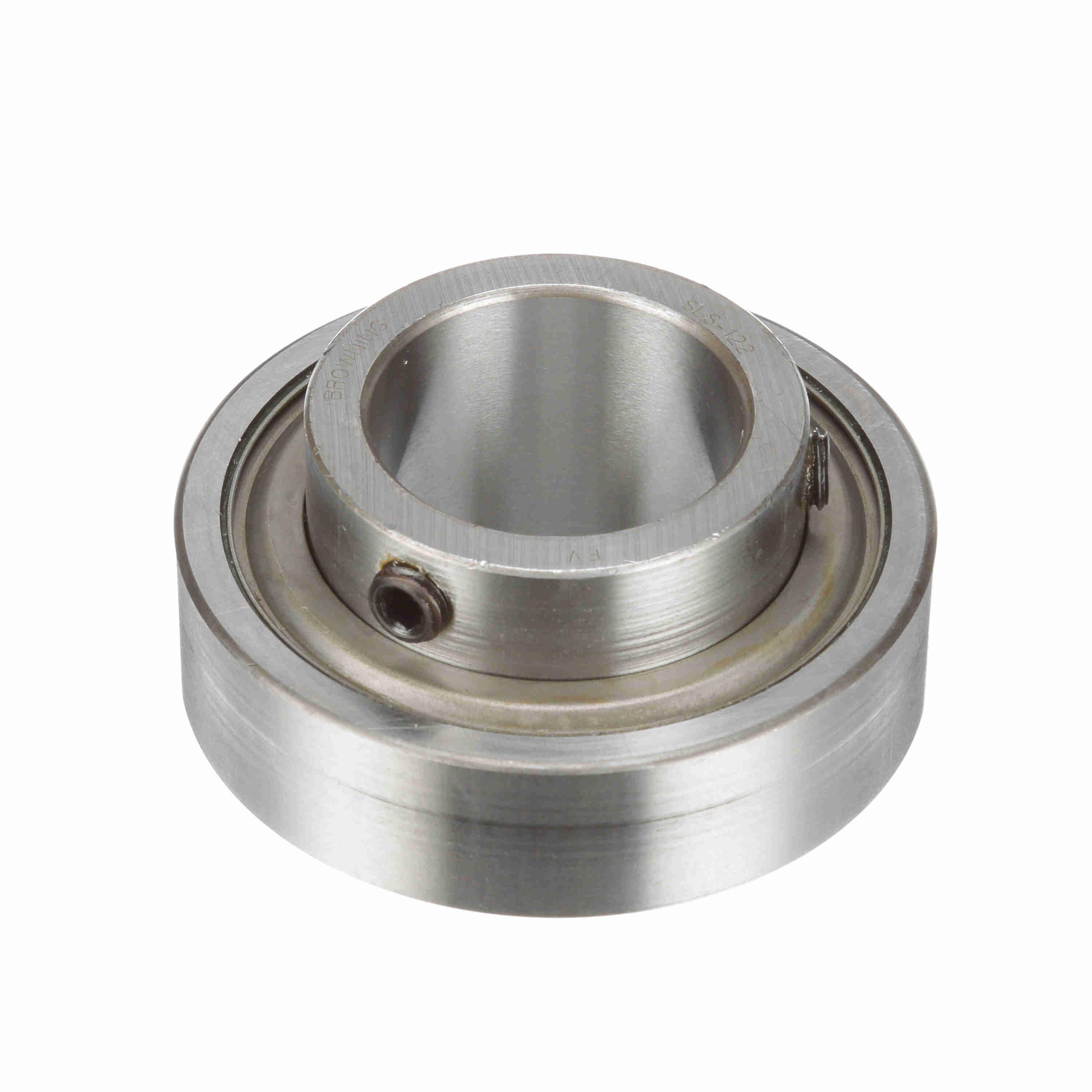

Browning® 767206 SLS 100 Light Duty Straight Bore Ball Bearing Insert, 1-3/8 in Dia Bore, 2.835 in OD, 1.281 in W, 5782 lb Dynamic/3493 lb Static Load
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662460344003
-
Manufacturer Part Number767206
-
CountryUSA
-
Load Capacity5782 lb Dynamic/3493 lb Static
-
Cage MaterialPlastic
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed2500 rpm
-
TypeLight Duty Straight Bore
-
Width1.281 in
-
SeriesSLS 100
-
Bearing MaterialSteel
-
Outside Diameter2.835 in
-
Bore Diameter1-3/8 in
- Cylindrical O.D. narrow inner ring bearing insert with no lubrication
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
-
Alternative Part NumberSLS-122
-
UNSPSC31171504
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
-
Warranty Information
