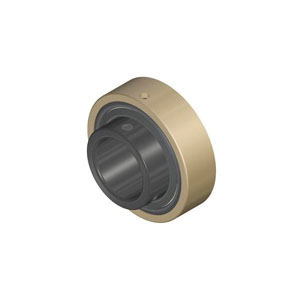

Sealmaster® 703995 AR Series Expansion Standard-Duty Straight Bore Ball Bearing Insert, 1-3/4 in Dia Bore, 3.562 in OD, 1.938 in W, 7901 lb Dynamic/5139 lb Static Load
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461025499
-
Manufacturer Part Number703995
-
CountryUSA
-
Load Capacity7901 lb Dynamic/5139 lb Static
-
Cage MaterialBrass
-
Temperature Rating-20 to 250 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed3800 rpm
-
TypeExpansion Standard-Duty Straight Bore
-
Seal MaterialNitrile Rubber
-
Width1.938 in
-
SeriesAR Series
-
Bearing MaterialSteel
-
Outside Diameter3.562 in
-
Bore Diameter1-3/4 in
- Wide outer race
- Lock pin and dimple system
- Land riding retainer
- Single setscrew locking
- Zone hardened inner race
- No felt seal with flinger
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- Lithium complex NLGI #2 grease with an EP additive
- Single lip contact seal type
- Without seal flinger
-
Alternative Part NumberAR-2-112C
-
UNSPSC31171504
-
Standards/ApprovalsABMA Standard
-
