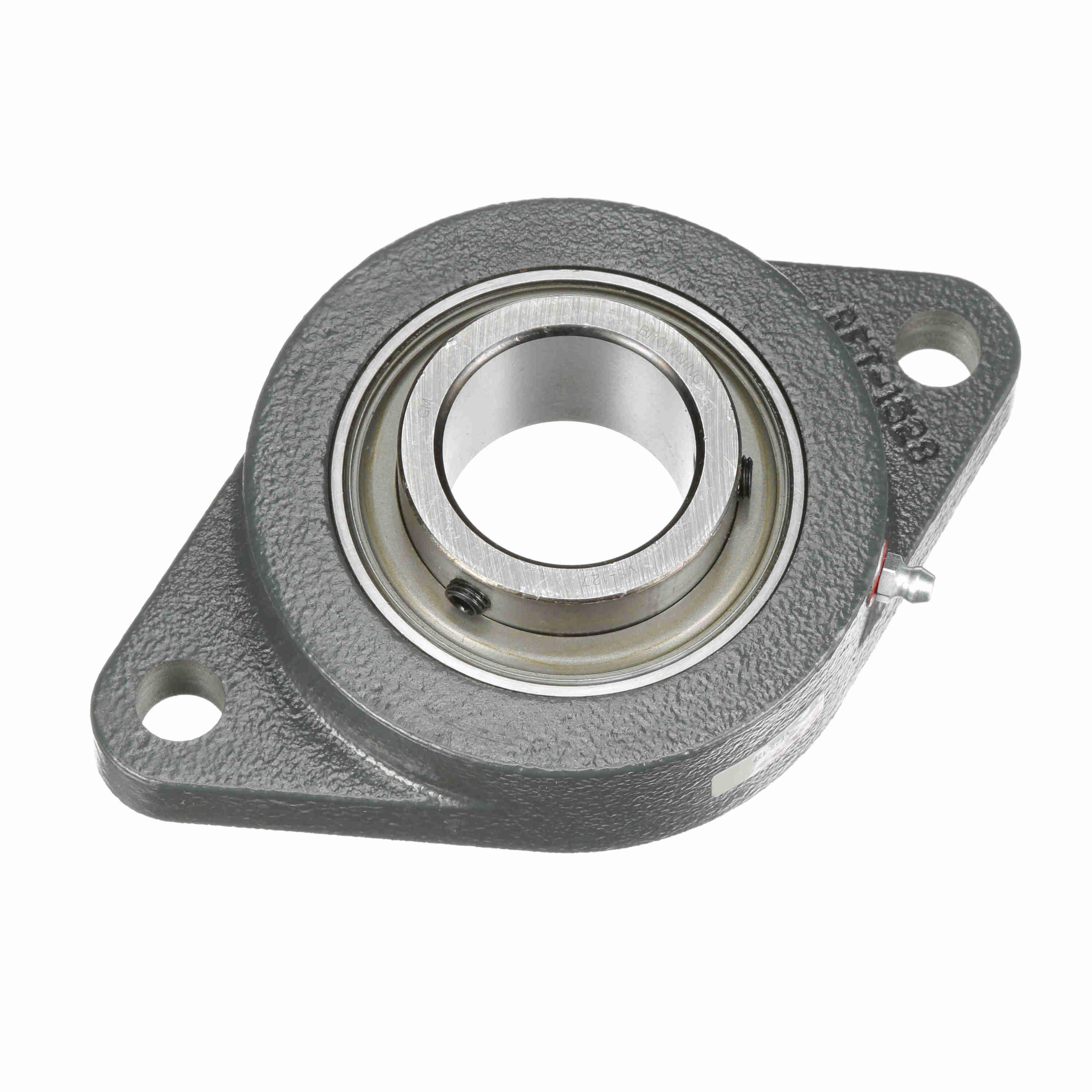

Browning® 767867 VF2S 100 Intermediate Duty Non-Expansion Flange Mount Ball Bearing Unit, 2 in Dia Bore, 7-1/4 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 5-1/4 in OAL/Dia
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289312481
-
Manufacturer Part Number767867
-
CountryUSA
-
Load Capacity9752 lb Dynamic/6601 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating-20 to 200 deg F
-
FinishGray Painted
-
Flange Mounting Type2-Bolt
-
Maximum Speed1750 rpm
-
TypeIntermediate Duty Non-Expansion
-
Seal MaterialNitrile Rubber
-
SeriesVF2S 100
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length7-1/4 in
-
Bore Diameter2 in
-
Overall Depth2-7/64 in
-
Overall Height8-1/2 in
-
Overall Length/Diameter5-1/4 in
- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
- 52100 steel insert
- Powder coat epoxy cast iron housing
- Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal
-
Alternative Part NumberVF2S-132
-
UNSPSC31171504
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
