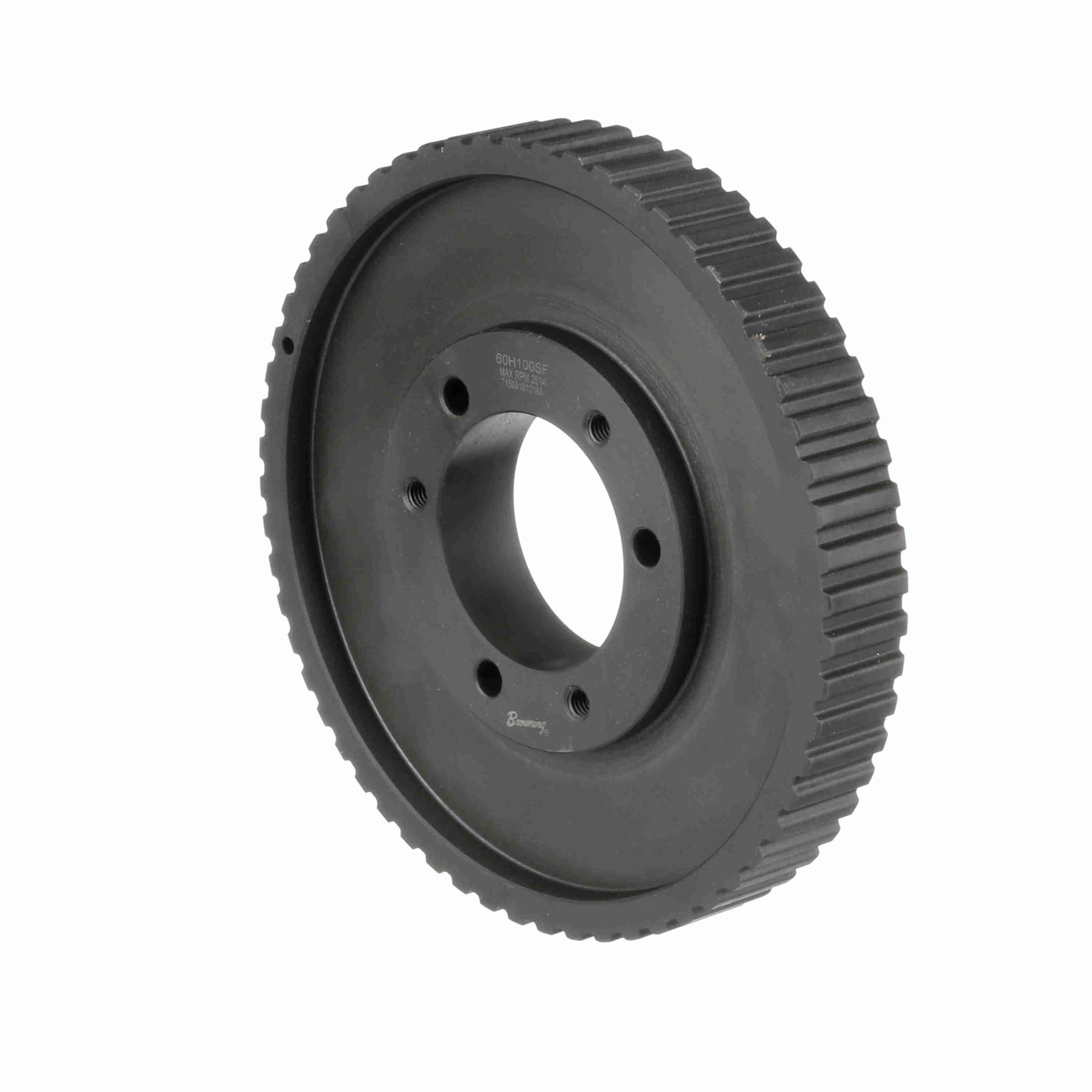

Browning® Gearbelt® 3513827 Type B Arm Synchronous Timing Pulley, 1/2 to 2-15/16 in QD® Bore, 9.495 in OD, 60 Grooves, 9.549 in Dia Pitch, 1-5/16 in W Face
Browning® Gearbelt® 3513827 Type B Arm Synchronous Timing Pulley, 1/2 to 2-15/16 in QD® Bore, 9.495 in OD, 60 Grooves, 9.549 in Dia Pitch, 1-5/16 in W Face
-
BrandBrowning®
-
UPC662289353125
-
Manufacturer Part Number3513827
-
CountryUSA
-
Face Width1-5/16 in
-
Bushing TypeSF
-
Pitch1/2 in
-
Pitch Diameter9.549 in
-
TypeType B Arm
-
Number of Grooves60
-
Outside Diameter9.495 in
-
Bore Diameter1/2 to 2-15/16 in
-
Bore TypeQD®
-
Suitable For Use With1 in W Type H100 Belt
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Freedom from initial belt tension, reduces bearing loads, increases life
- Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Molded Teeth - Shear resistance teeth designed to provide smooth positive engagement with gearbelt pulleys
- High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
- Compression Section - Bonds to belt cords for protections against dirt, grease, oil, ozone, and other environmental hazards
-
Alternative Part Number60H100SF
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
