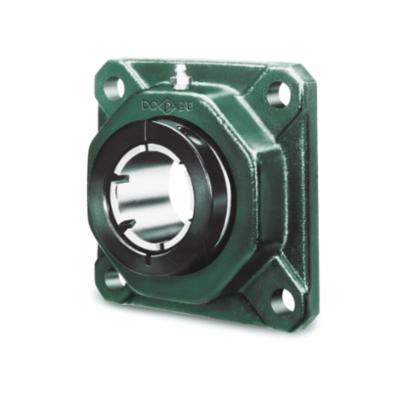

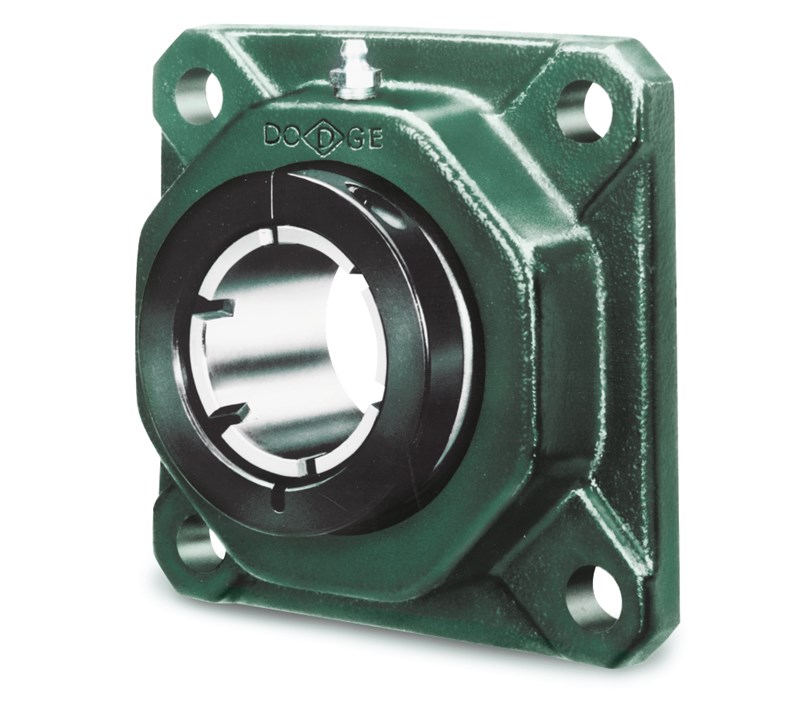

F4B-SXR-108 Dodge® 131117 208 Normal Duty Non-Expansion Single Lip Flange Mount Ball Bearing Unit, 1-1/2 in Dia Bore, 4 in L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 5.13 in OAL/Dia
F4B-SXR-108 Dodge® 131117 208 Normal Duty Non-Expansion Single Lip Flange Mount Ball Bearing Unit, 1-1/2 in Dia Bore, 4 in L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 5.13 in OAL/Dia
-
BrandDodge®
-
UPC782475117055
-
Manufacturer Part Number131117
-
CountryUSA
-
Load Capacity7332 lb Dynamic/4475 lb Static
-
Locking DeviceEccentric Collar
-
Temperature Rating225 to 400 deg F
-
FinishPowder Coated
-
Flange Mounting Type4-Bolt Base
-
Maximum Speed5000 rpm
-
TypeNormal Duty Non-Expansion Single Lip
-
Seal MaterialNitrile Rubber
-
Series208
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length4 in
-
Bore Diameter1-1/2 in
-
Overall Depth2.15 in
-
Overall Height5.13 in
-
Overall Length/Diameter5.13 in
- Precision-hardened inner ring
- Normal duty wide inner ring
- Dual guard land-riding, positive contact seal
- Stronger and flexible ball cage
- Simplified anti-rotation device
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100939950 |
| Motion Industries | 00562753 |
-
Alternative Part NumberF4B-SXR-108
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
Catalog
-
Specification Sheet
-
Owners/User Manual
-
