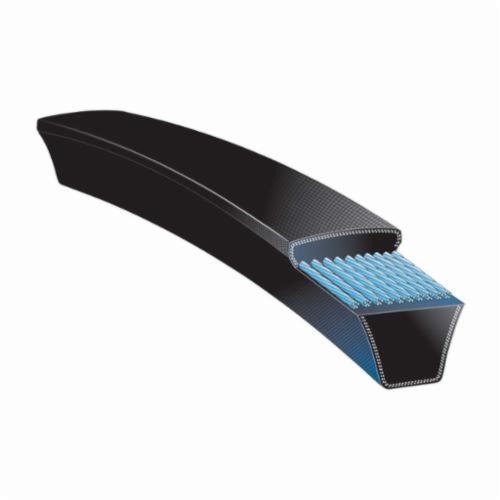

Gates V-BELTS GAT 5-V-2500
Combines the strength of a wrapped belt construction with the economies of a narrow section V-belt. Transmits more power in a given space and allows more compact drive design than classical section V-belts. In short, it offers you more power and considerably reduces the space needed. This significantly cuts the overall drive cost. Super HC™ V-belts also have exclusive Gates construction features for longer life on your drives.
-
BrandGates® Power Transmission
-
UPC72053016529
-
Manufacturer Part Number5V2500
-
CountryUSA|Canada
-
Temperature Range-30 to 180 deg F
-
Thickness35/64 in
-
MaterialChloroprene
-
Top Width5/8 in
-
Reinforced MaterialFlex-Bonded Polyester
-
ColorBlack
-
TypeBanded Heavy Duty
-
Minimum Pulley Diameter7.958 in
-
Section Size5V
-
Number of Ribs1
-
Outside Length250 in
-
Series9334
- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
- Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life

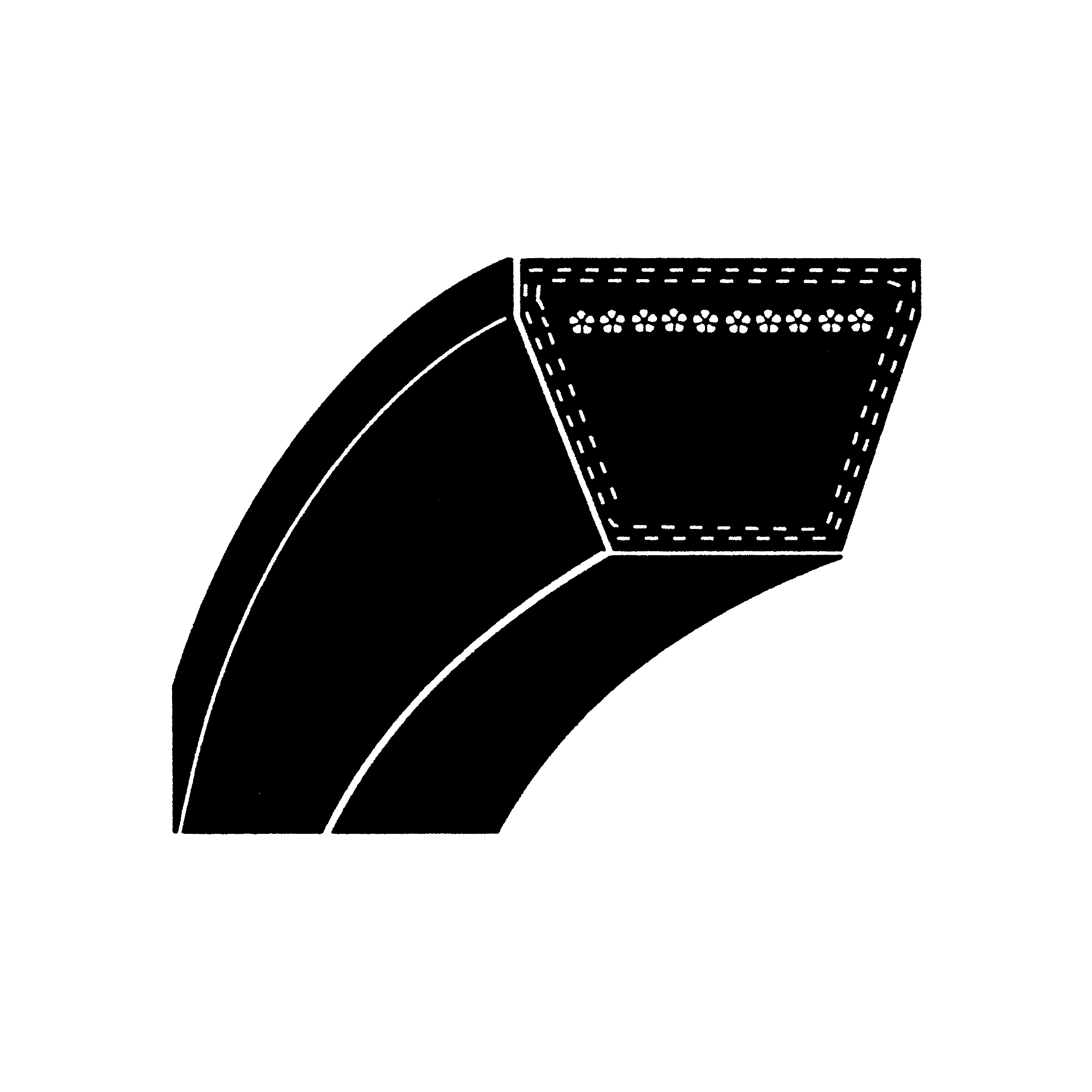

- TB Wood's® Narrow Ultra-V belts are static conducting, oil and heat resistant
| Competitor Name | Competitor Part Number |
|---|---|
| Motion Industries | 00677076 |
-
UNSPSC26111801
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
Alternative Part Number93342500
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
