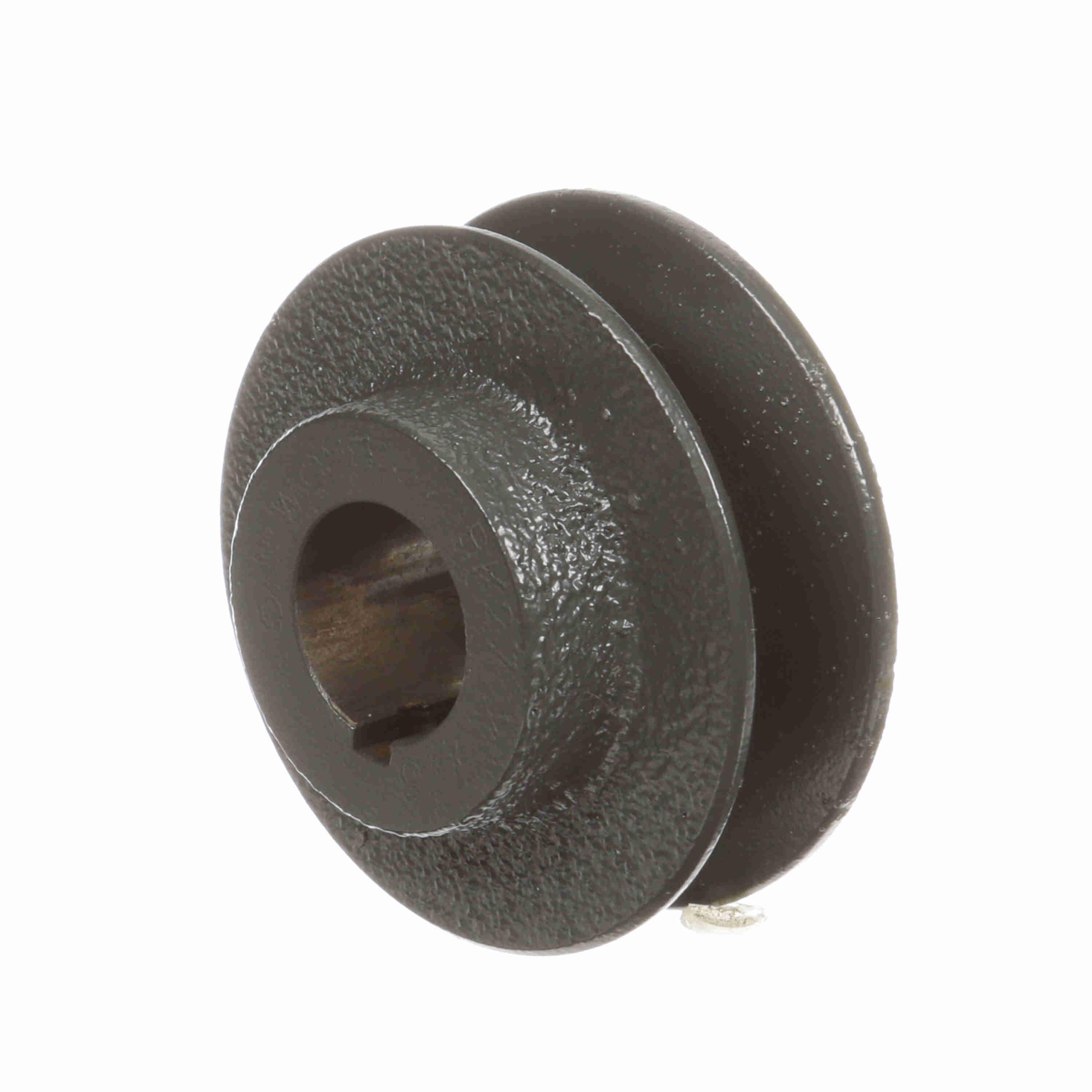

Browning 1-GRV 7/8"-ID A OR B-BELT SHEAVES BRW BK-27 X 7/8
Browning® Classical Gripbelt® 1027945 BK Series Type 2 Single Groove Sheave, Finished Bore, 7/8 in Dia Bore, 2.7 in OD, 2.2 in (A)/2.7 in (B) Dia Pitch, 13/16 in W Face
-
BrandBrowning®
-
UPC662289315260
-
Manufacturer Part Number1027945
-
CountryUSA
-
Face Width13/16 in
-
Pitch Diameter2.2 in (A)/2.7 in (B)
-
MaterialCast Iron
-
TypeType 2
-
SeriesBK Series
-
Hub Projection13/32 in
-
Outside Diameter2.7 in
-
Bore Diameter7/8 in
-
Bore TypeFinished
-
Overall Length1-7/32 in
-
Suitable For Use With4L/A and 5L/B Cross Section Belt
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Tighter tolerances by 25%
- Twice balanced after assembly
- Tightened micro-finish on groove walls for increased belt life
- Precision balanced to provide smooth, vibration free performance
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part NumberBK27X7/8
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
