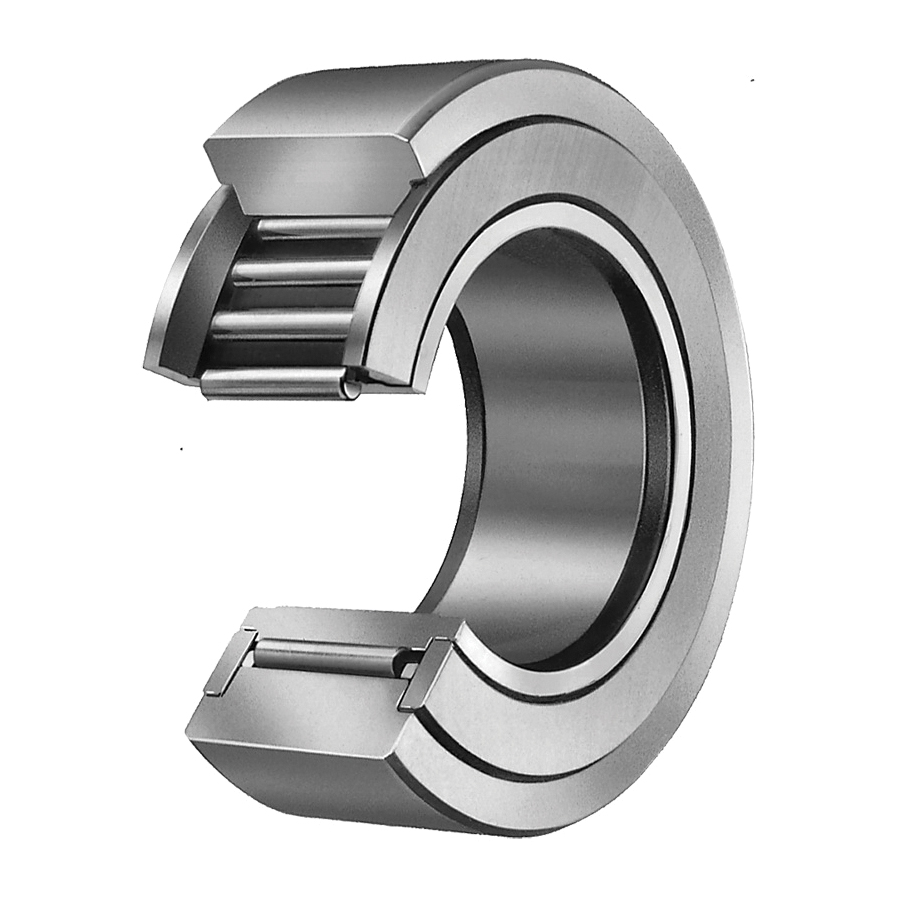

IKO NART10UUR Metric Series Caged Non-Separable Roller Follower With Crowned Outer Ring, Inner Ring and Oil Hole, 10 mm Dia Bore, 30 mm Dia x 14 mm W Roller, 8030 N Dynamic/7540 N Static Load, High Carbon Chrome Steel Roller
IKO manufacturers a variety of durable Roller Followers that feature needle rollers embedded in a thick outer ring, specifically designed for smooth outer ring rotation. Crowned and cylindrical outer ring styles meet a diverse range of application needs. Outer rings run directly on mating track surfaces.
-
BrandIKO
-
Manufacturer Part NumberNART10UUR
-
CountryUSA
-
Load Capacity8030 N Dynamic/7540 N Static
-
Closure TypeSealed
-
Bore Diameter10 mm
- Crowned outer rings that mitigate end loads due to installation errors
- Specifications for cam mechanisms and for linear guidance in conveying equipment
- Caged bearings feature a smaller coefficient of friction, ideal for high-speed rotation
- Non-separable followers feature press-fit end plates at both sides of the inner ring
- Sealed style features synthetic rubber seals to prevent dust and dirt from entering the bearing
-
UNSPSC31171505
-
