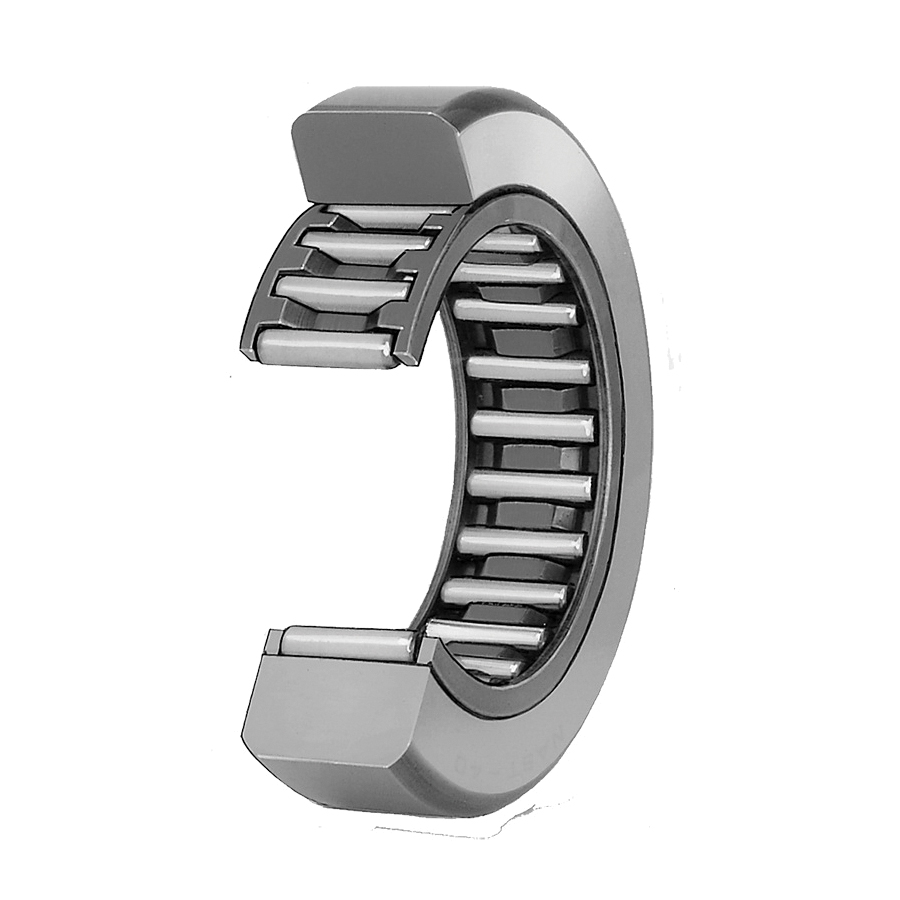

IKO RNAST6 Metric Series Caged Separable Roller Follower With Cylindrical Outer Ring, 10 mm Dia Bore, 19 mm Dia x 9.8 mm W Roller, 4160 N Dynamic/4550 N Static Load, High Carbon Chrome Steel Roller
IKO manufacturers a variety of durable Roller Followers that feature needle rollers embedded in a thick outer ring, specifically designed for smooth outer ring rotation. Crowned and cylindrical outer ring styles meet a diverse range of application needs. Outer rings run directly on mating track surfaces.
-
BrandIKO
-
Manufacturer Part NumberRNAST6
-
CountryUSA
-
Load Capacity4160 N Dynamic/4550 N Static
-
Temperature Rating-20 to 120 deg C
-
Closure TypeOpen
-
TypeCaged Separable
-
Roller Diameter19 mm
-
Roller MaterialHigh Carbon Chrome Steel
-
Roller Width9.8 mm
-
SeriesRNAST Metric Series
-
Bore Diameter10 mm
- Cylindrical outer rings for greater contact with mating track surfaces for applications with large loads or tracks with low surface hardness
- Specifications for cam mechanisms and for linear guidance in conveying equipment
- Caged bearings feature a smaller coefficient of friction, ideal for high-speed rotation
- Separable followers combine an outer ring, inner ring and needle cage for excellent high-speed performance
- Without inner ring and oil hole
-
UNSPSC31171505
-
