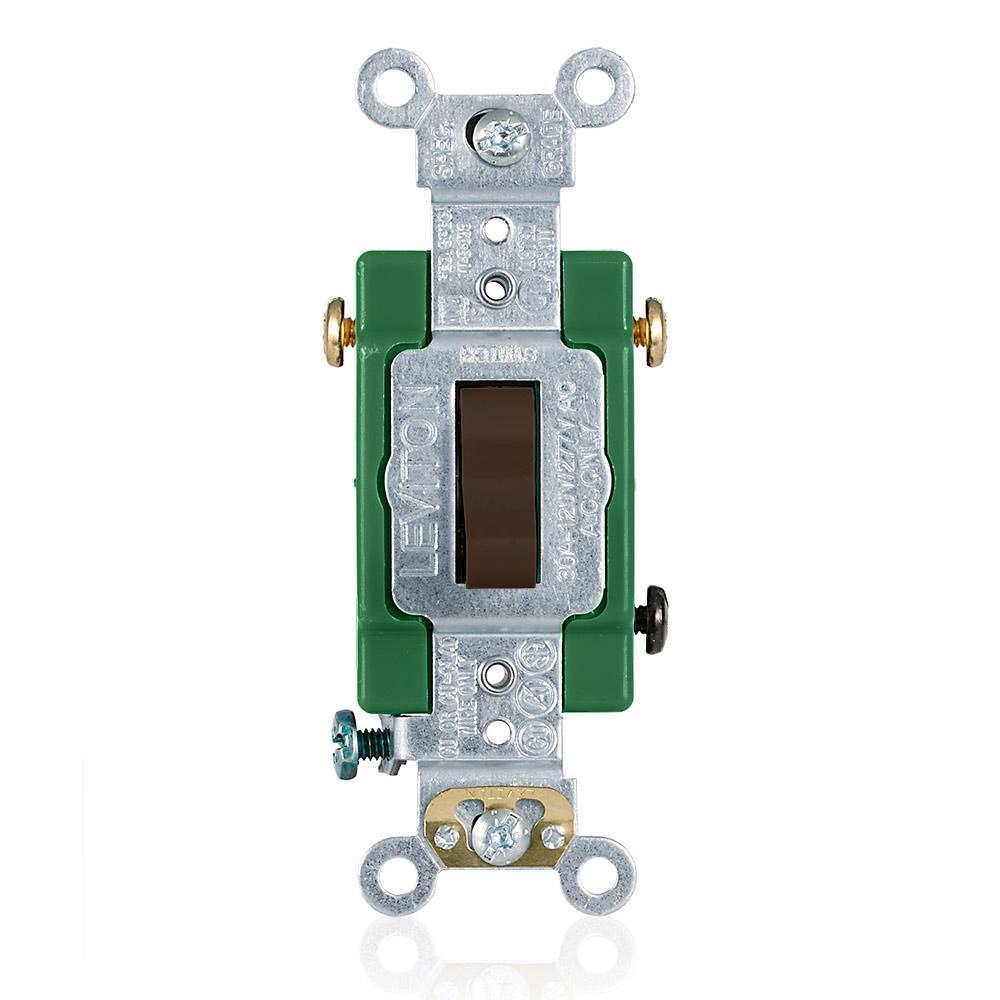

Leviton® 3033-2 3-Way Self-Grounding Toggle Switch, 120/277 V AC, 30 A, 2 hp Power Rating

0 Ratings
$22.00
Out of Stock
SKU: LEV30332
GTIN (EAN,ISBN): 00078477361931
noimage_new

Leviton® industrial grade AC toggle switches for extra heavy duty applications represent top-of-the-line quality and peak performance. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

In Stock
HCI of Jackson: 0
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Main specs
  • Brand
    Leviton®
  • UPC
    078477361931
  • Manufacturer Part Number
    3033-2
  • Country
    USA|Canada
Specification
  • Terminal Type
    Back/Side Wire
  • Material
    Thermoplastic
  • Power Rating
    2 hp
  • Color
    Brown
  • Type
    3-Way Self-Grounding
  • Mounting
    Surface
  • Contact Rating
    2 hp at 120 to 277 V AC
  • Actuator
    Toggle
  • Voltage Rating
    120/277 V AC
  • Amperage Rating
    30 A
  • Dimensions
    46 in H x 1.31 in W x 13 in D
  • Operating Cycles
    50000 Cycles
  • Enclosure
    NEMA WD-1/WD-6
  • Environmental Conditions
    -40 to 65 deg C Operating Temperature
Features
  • Top of the line industrial quality
  • Heavy gauge copper alloy brush arm for superior performance
  • Large silver alloy contacts for long life prevent sticking, welding and excessive pitting
  • Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
  • Self-grounding clip (self grounding when used with a grounded metal wallbox)
  • 2 hp at 120 to 277 VAC power rating
Competitor Information
Competitor Name Competitor Part Number
Grainger 2WEU6
Additional Information
  • Alternative Part Number
    7316799
  • UNSPSC
    39122211
  • IDEA Index ID
    7316799
  • Package Description
    EACH
  • Standards/Approvals
    RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
  • Warranty
    10 year Limited
Attachments
Reviews

There are yet no reviews for this product.
