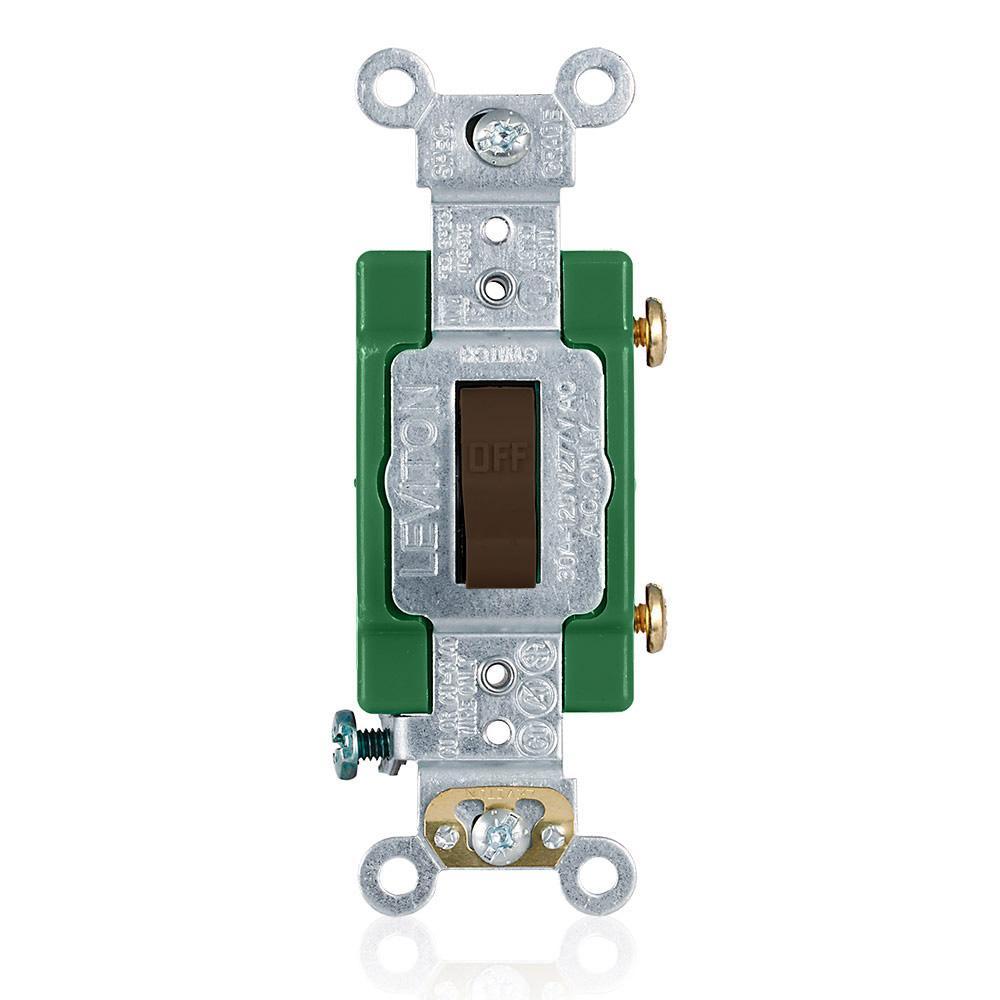

Leviton® 3031-2 Self-Grounding Toggle Switch, 120/277 V AC, 30 A, 2 hp Power Rating
Leviton® industrial grade AC toggle switches for extra heavy duty applications represent top-of-the-line quality and peak performance. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
-
BrandLeviton®
-
UPC078477361849
-
Manufacturer Part Number3031-2
-
CountryUSA|Canada
-
Terminal TypeBack/Side Wire
-
MaterialThermoplastic
-
Power Rating2 hp
-
ColorBrown
-
TypeSelf-Grounding
-
MountingSurface
-
Contact ConfigurationSP
-
Contact Rating2 hp at 120 to 277 VAC
-
ActuatorToggle
-
Voltage Rating120/277 V AC
-
Amperage Rating30 A
-
Number of Poles1
-
Dimensions46 in H x 1.31 in W x 13 in D
-
Operating Cycles50000 Cycles
-
EnclosureNEMA WD-1/WD-6
-
Environmental Conditions-40 to 65 deg C Operating Temperature
- Top of the line industrial quality
- Heavy gauge copper alloy brush arm for superior performance
- Large silver alloy contacts for long life prevent sticking, welding and excessive pitting
- Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
- Self-grounding clip (self grounding when used with a grounded metal wallbox)
- 2 hp at 120 to 277 VAC power rating
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 2WER5 |
-
Alternative Part Number7316765
-
UNSPSC39122211
-
IDEA Index ID7316765
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
-
Warranty10 years Limited
-
RoHS
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
