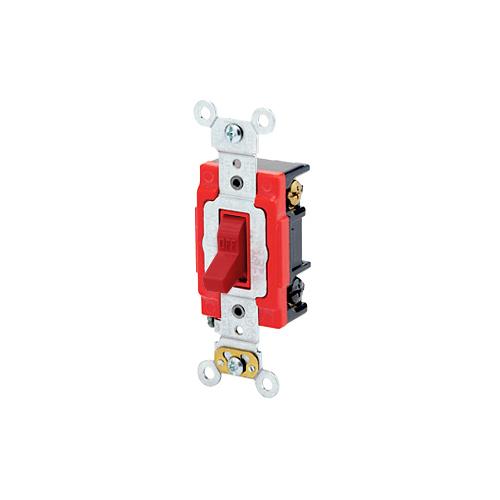

Leviton® 1223-2R 3-Way Self-Grounding AC Quiet Toggle Switch, 120/277 V AC, 20 A, 800 W, 1000 VA Power Rating
Leviton® industrial grade AC toggle switches for extra heavy duty applications represent top-of-the-line quality and peak performance. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
-
BrandLeviton®
-
UPC078477223468
-
Manufacturer Part Number1223-2R
-
CountryUSA|Canada
-
Terminal TypeBack/Side Wire
-
MaterialThermoplastic
-
Power Rating800 W, 1000 VA
-
ColorRed
-
Type3-Way Self-Grounding
-
MountingSurface
-
Contact Rating1 hp at 120 V AC, 2 hp at 240 V AC
-
ActuatorToggle
-
Voltage Rating120/277 V AC
-
Amperage Rating20 A
-
Dimensions46 in H x 1.31 in W x 13 in D
-
Operating Cycles50000 Cycles
-
EnclosureNEMA WD-1/WD-6
-
Environmental Conditions-40 to 65 deg C Operating Temperature
- Heavy gauge copper alloy brush arm for superior performance
- Large silver alloy contacts for long life prevent sticking, welding and excessive pitting
- Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
- 1 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 2WEH8 |
-
Alternative Part Number9082003|12132740
-
UNSPSC39122211
-
IDEA Index ID9082003
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|ANSI C73|Federal Specification WS896E File No. E7458|UL94 V-2 Flammability Rating|ANSI (C-73)|CSA C22.2 No. 111 (File 152105) Certified|NOM (057)|UL Fed Spec WS896E (File E7458)|UL 20 Listed
-
Warranty10 Years Limited
-
