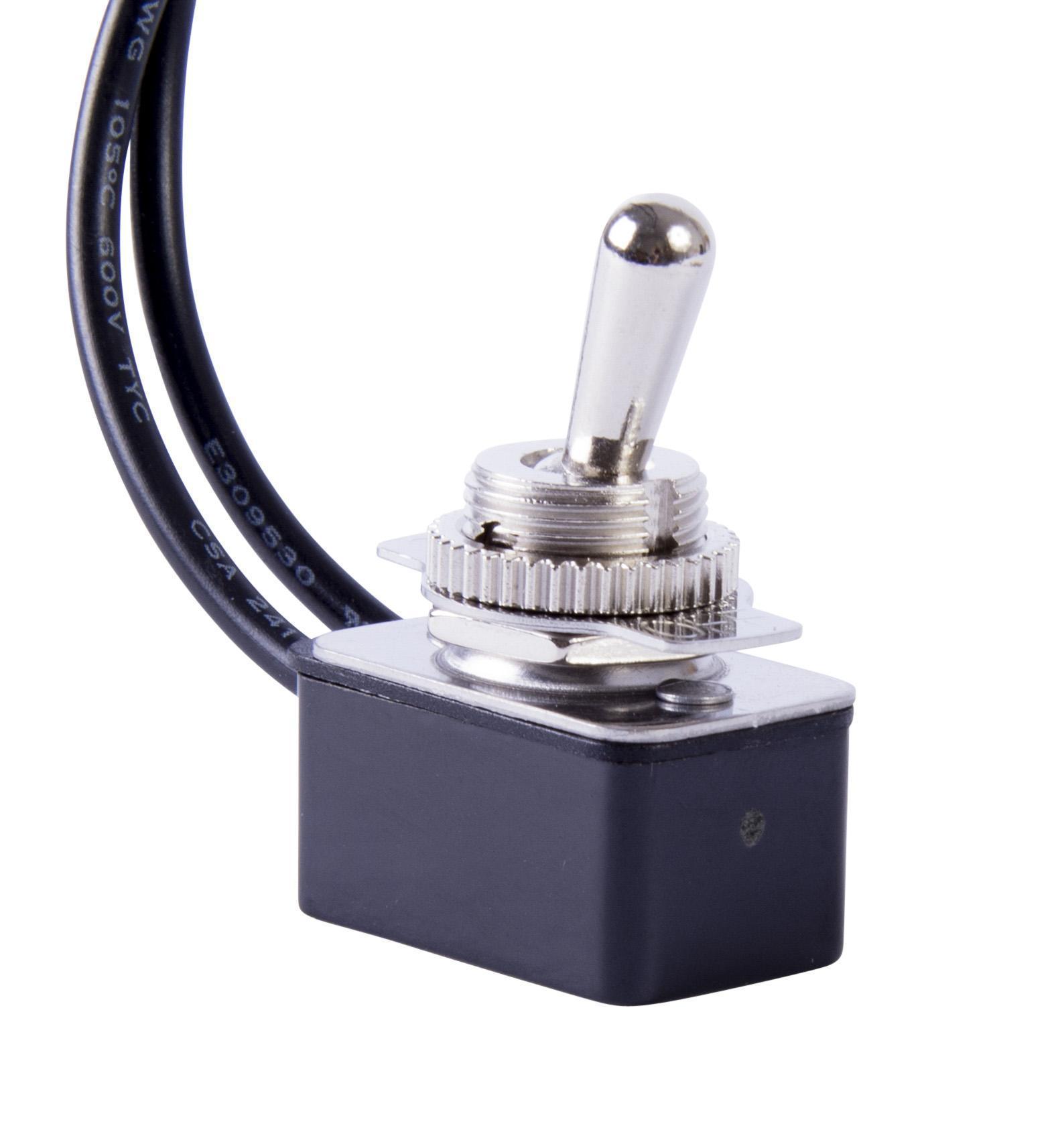

Gardner Bender GSW-18 Medium Duty Toggle Switch, 125 V AC/250 V DC, 8/4 A, 1/3 hp Power Rating, SPST Contact
The Gardner Bender 20/10 Amp Toggle Switch features an O ring and has screw terminals for quick-and-easy connections. The switch offers single-pole, single-throw (SPST) ON-OFF circuitry in a classic bat-handle design for easy usage.
-
BrandGardner Bender
-
UPC032076890186
-
Manufacturer Part NumberGSW-18
-
CountryUSA|Canada
-
Terminal TypeLead Wire
-
Power Rating1/3 hp
-
Closed Contact Resistance50 Ohm
-
ColorChrome
-
TypeMedium Duty
-
MountingSurface
-
Contact ConfigurationSPST
-
ActuatorLever
-
Voltage Rating125 V AC/250 V DC
-
Amperage Rating8/4 A
-
Number of Poles2
-
Dimensions1.47 in H
-
Environmental Conditions75 deg C Temperature
- 1/2 in mounting hole required
- ON/OFF (maintained)
- 6 in wire leads
- Toggle switch with a bat handle for easy operation
- 1/3 hp at 10 A/125 VAC
- Use for medium duty applications
- On-off SPST circuitry
- Compatible with standard 1/2 in mounting holes
- On-off faceplate for easy use
| Cross-Reference Number |
|---|
| 522134 |
-
UNSPSC39122211
-
Standards/ApprovalsCSA Certified|UL Listed|RoHS Compliant|UL Recognized
-
Warranty1 Year
-
Specification Sheet
