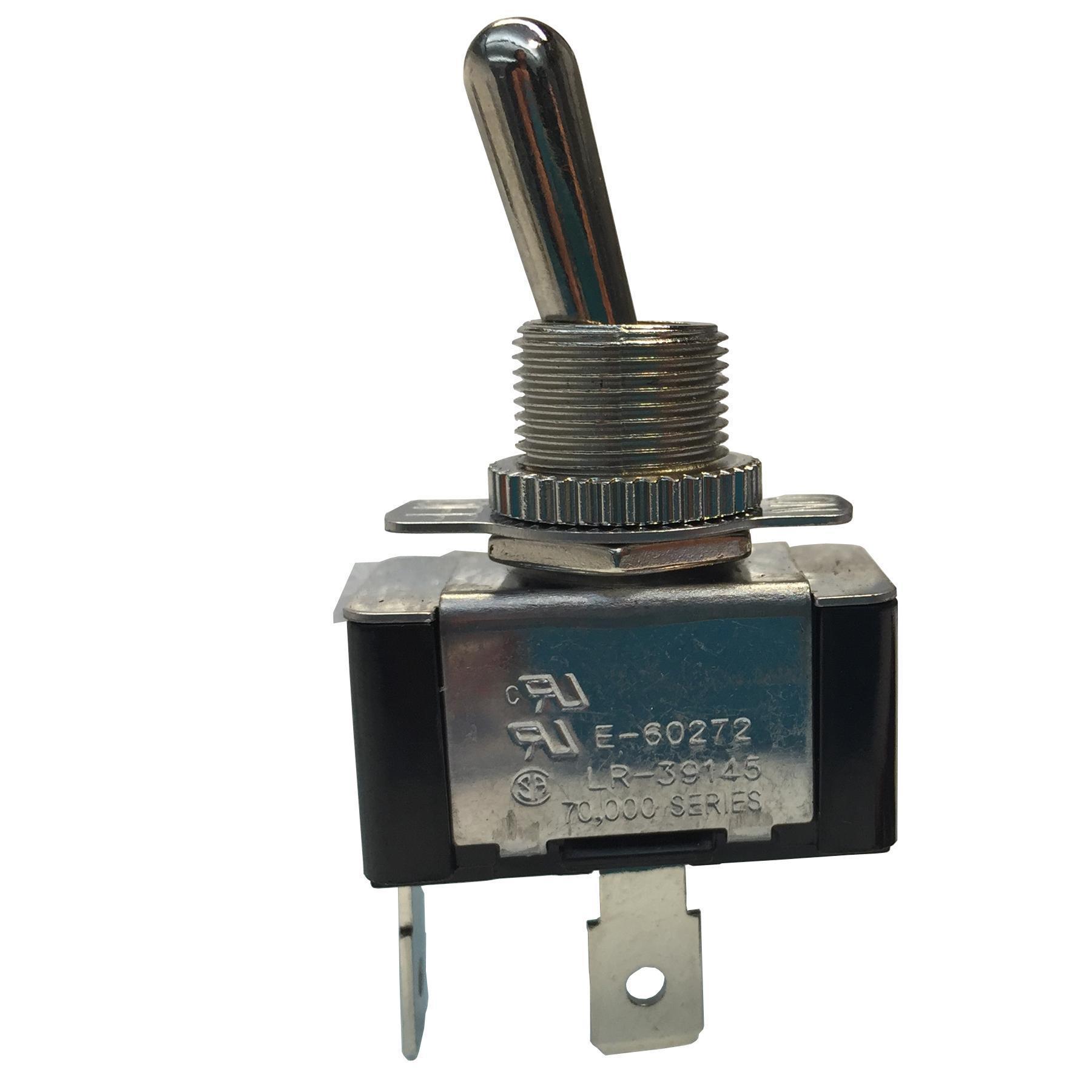

Gardner Bender GSW-121 Toggle Switch, 125/277 V AC, 20/10 A, 3/4 hp Power Rating, SPST Contact
The Gardner Bender 20/10 Amp Toggle Switch features an O ring and has screw terminals for quick-and-easy connections. The switch offers single-pole, single-throw (SPST) ON-OFF circuitry in a classic bat-handle design for easy usage.
-
BrandGardner Bender
-
UPC032076021221
-
Manufacturer Part NumberGSW-121
-
CountryUSA|Canada
-
Terminal TypeSpade
-
Power Rating3/4 hp
-
Closed Contact Resistance50 MOhm
-
ColorChrome
-
MountingSurface
-
Contact ConfigurationSPST
-
ActuatorLever
-
Voltage Rating125/277 V AC
-
Amperage Rating20/10 A
-
Number of Poles2
-
Dimensions2-1/4 in H
-
Environmental Conditions75 deg C Temperature
- 1/2 in mounting hole required
- ON/OFF (maintained)
- Toggle switch with a bat handle for easy operation
- 3/4 hp at 125/250 VAC
- Use for industrial equipment, power tools and emergency lighting
- Single-pole single throw circuitry
- Designed to fit standard 1/2 in mounting holes
| Cross-Reference Number |
|---|
| 538981 |
-
UNSPSC39122211
-
Standards/ApprovalsCSA Certified|UL Listed|RoHS Compliant|UL Recognized
-
Warranty1 Year
-
Specification Sheet
