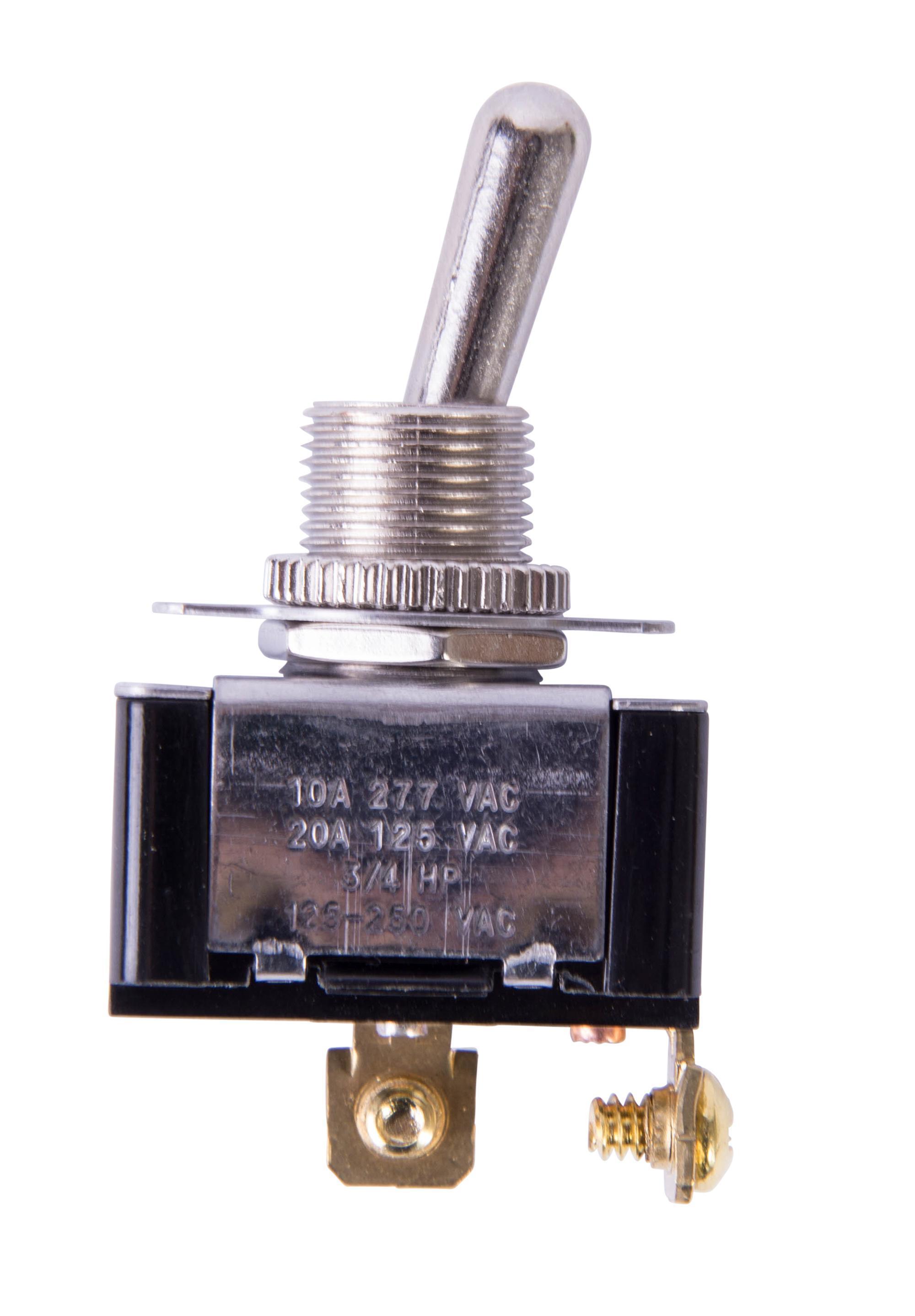

Gardner Bender GSW-11 Toggle Switch, 125/277 V AC, 20/10 A, 3/4 hp Power Rating, SPST Contact
Gardner Bender switches are available in many different styles and sizes. They are used in countless applications, from basic ON-OFF to multifunction applications. Most of our electrical switches are suitable for marine, industrial, or automotive applications. They are available in a variety of characteristics including actuator type, handle shape, body construction and size, terminal type, voltage rating, sealing properties, and illumination. Gardner Bender switches are leading the industry in quality and durability.
-
BrandGardner Bender
-
UPC032076890117
-
Manufacturer Part NumberGSW-11
-
CountryUSA|Canada
-
Terminal TypeScrew
-
Power Rating3/4 hp
-
Closed Contact Resistance50 MOhm
-
ColorChrome
-
MountingThreaded
-
Contact ConfigurationSPST
-
ActuatorLever
-
Voltage Rating125/277 V AC
-
Amperage Rating20/10 A
-
Number of Poles2
-
Dimensions2.14 in H
-
Environmental Conditions75 deg C Temperature
- 1/2 in mounting hole required
- ON/OFF (maintained)
- 3 Screw terminals for quick and easy connections
- Toggle switch with a bat handle for easy operation
- 3/4 hp at 125/250 VAC
- Use for industrial equipment or emergency lighting
- On-off SPST circuitry
- Nickel plated
| Cross-Reference Number |
|---|
| 522045 |
-
UNSPSC39122211
-
Standards/ApprovalsCSA Certified|UL Listed|RoHS Compliant|UL Recognized
-
Warranty1 Year
-
Specification Sheet
