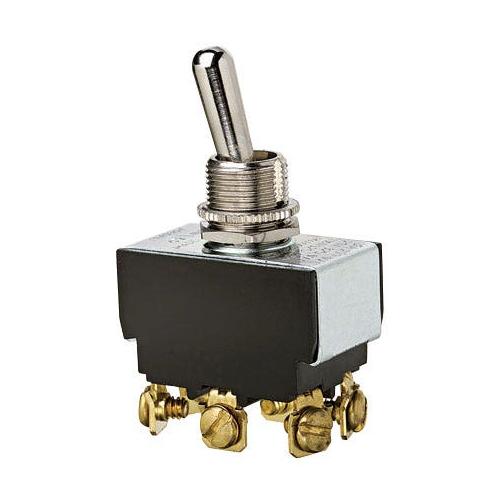

IDEAL 20-AMP DPDT ON-OFF-ON SWITCH IDL 774-000

0 Ratings
$36.67
In Stock
SKU: IDL774000
GTIN (EAN,ISBN): 00783250573547
noimage_new

IDEAL® 774000 Heavy Duty Toggle Switch, 125/227 VAC, 20/10 A, 1-1/2 hp Power Rating, DPDT ON-OFF-ON Contact

In Stock
HCI of Jackson: 0
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 3
HCI of Gallatin: 0
My Wishlist
Compare
Back to: Toggle Switches
Main specs
  • Brand
    IDEAL®
  • UPC
    783250573547
  • Manufacturer Part Number
    774000
  • Country
    USA
Specification
  • Material
    Solid Brass
  • Contact Configuration
    On-Off-On DPDT
  • Contact Rating
    Factory Tested 100000 Cycles to 21 A 14.8 V DC
  • Actuator
    Toggle
  • Amperage Rating
    20/10 A
  • Dimensions
    1.3 in L x 0.76 in W x 0.8 in H
  • Environmental Conditions
    32 to 185 deg F Operating Temperature
  • Terminal Type
    Screw
  • Power Rating
    1-1/2 hp
  • Type
    Heavy Duty
  • Voltage Rating
    125/227 V AC
  • Number of Poles
    2
  • Operating Cycles
    100000 Cycles
Features
  • Rugged long-wearing solid brass/nickel-plated bushings
  • 1/2 in diameter mounting hole
  • Dielectric Strength - 1500V
  • Mechanical Life - 100,000 cycles
Competitor Information
Competitor Name Cross-Reference Number
Grainger 1XWT1
Fastenal 0713540
Additional Information
  • Alternative Part Number
    8346189
  • UNSPSC
    39122211
  • IDEA Index ID
    8346189
  • Package Description
    EACH
  • Standards/Approvals
    RoHS Compliant|CSA Certified|UL Recognized
