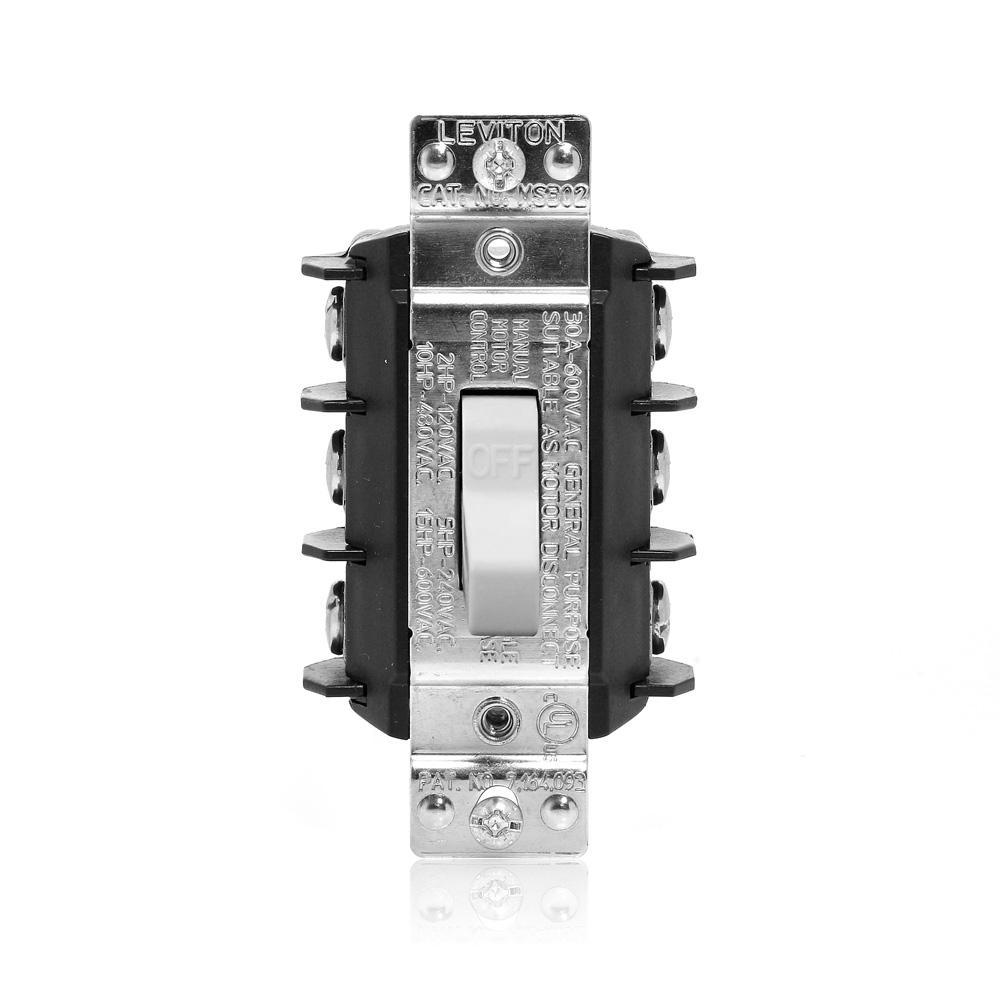

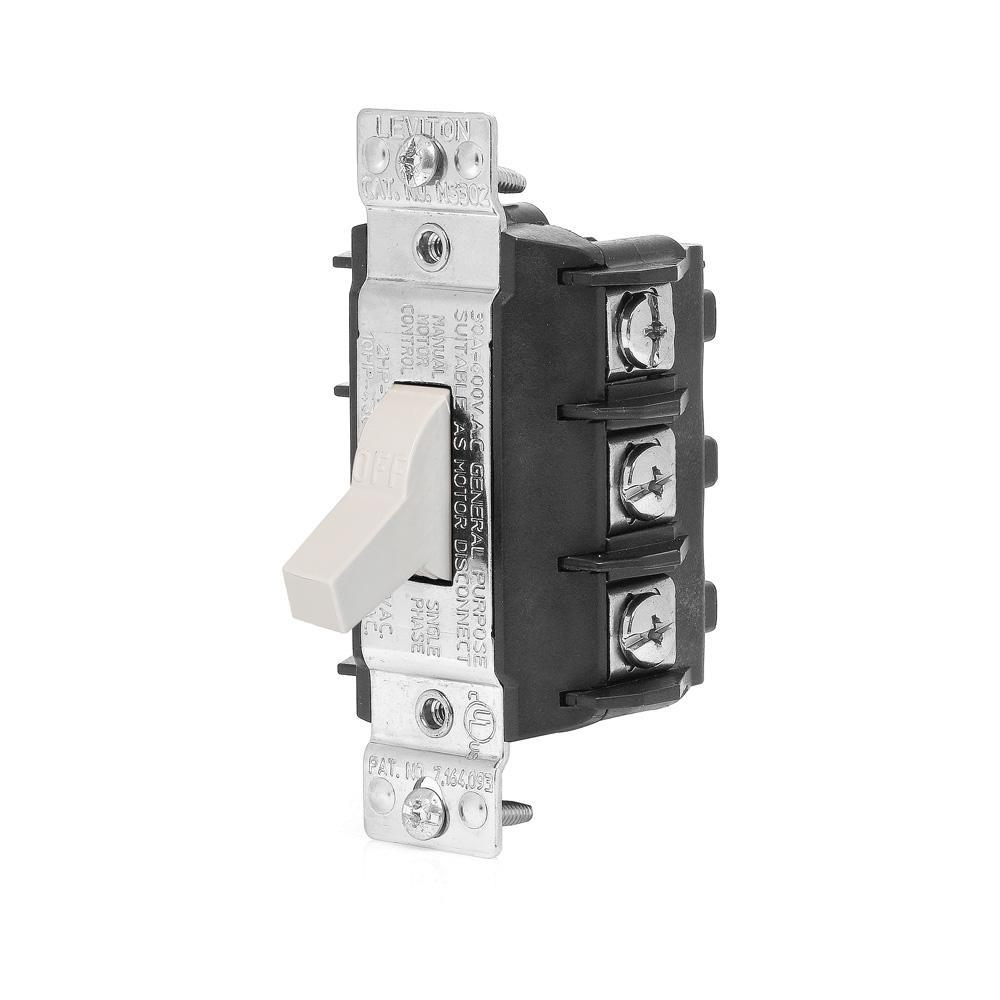

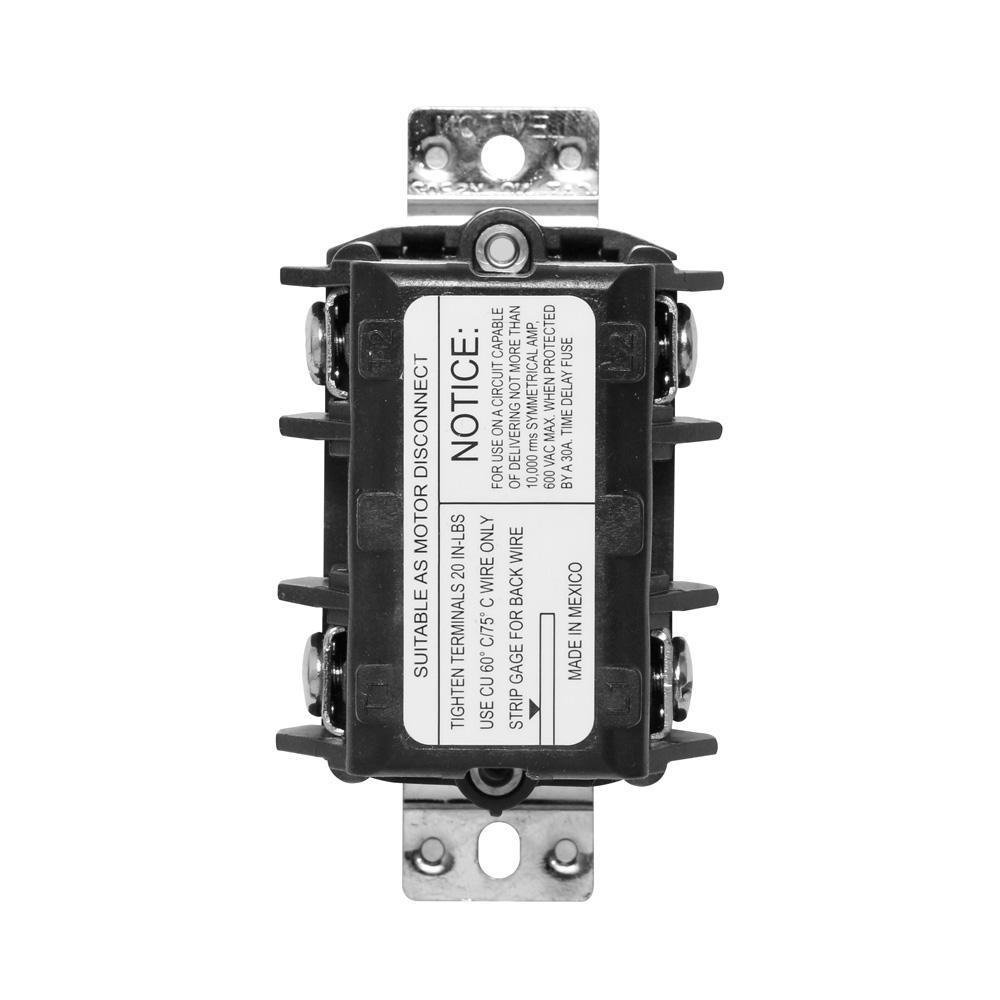

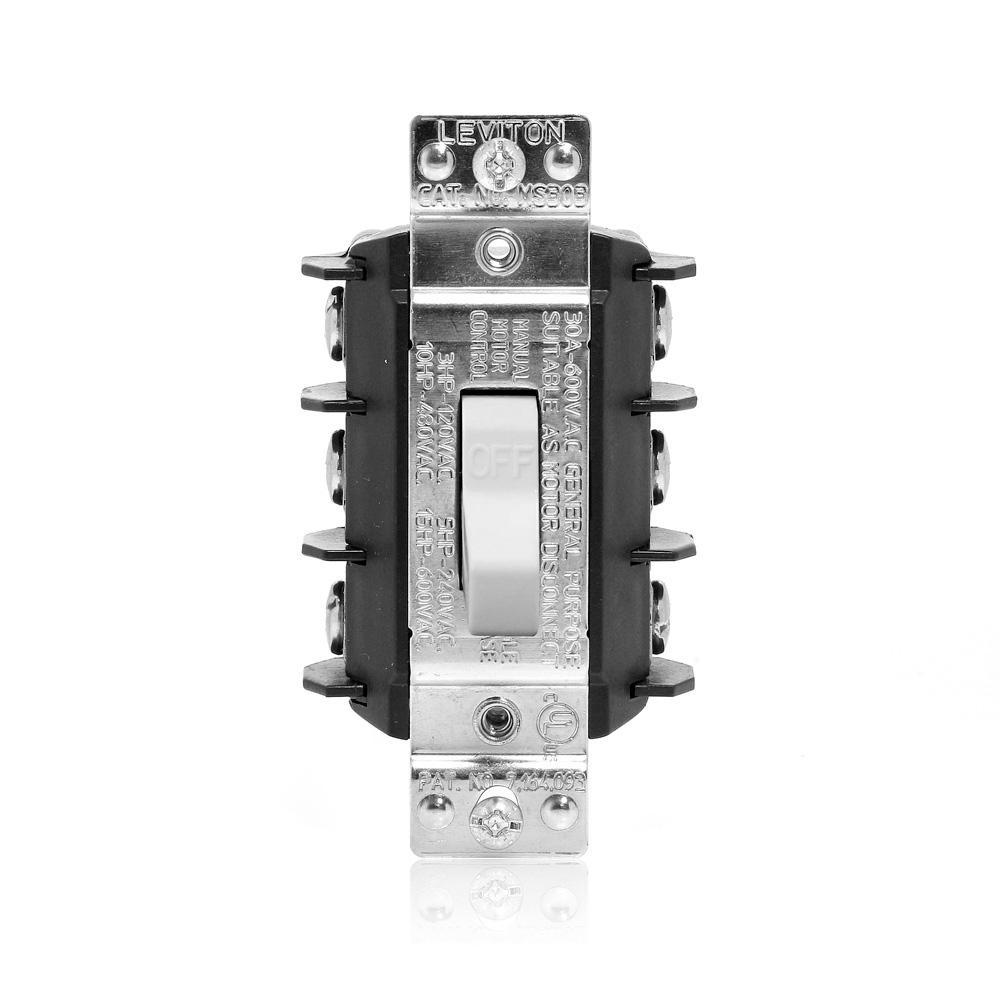

Leviton® Powerswitch® MS303-DSW 3-Phase Manual Motor Controller Non-Grounding Motor Switch, 600 V AC, 30 A, 20 hp Power Rating
Powerswitch® industrial grade AC manual motor controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both 1-phase and 3-phase applications.
-
BrandLeviton®
-
UPC078477983720
-
Manufacturer Part NumberMS303-DSW
-
CountryUSA
-
Terminal TypeScrew/Back/Side Wiring
-
MaterialThermoplastic Polyester
-
Power Rating20 hp
-
ColorWhite
-
Type3-Phase Manual Motor Controller Non-Grounding
-
MountingYoke
-
ActuatorToggle
-
Voltage Rating600 V AC
-
Amperage Rating30 A
-
Number of Poles3
-
Dimensions3.8 in H x 2 in W x 2.5 in D
-
Operating Cycles6000 Cycles
-
Environmental Conditions-40 to 60 deg C
- All molded parts are thermoplastic to resist impact, chemicals, temperature, tracking and arcing
- Cam driven mechanism enhances fast-make/slow-break
- Silver alloy contacts for maximum conductivity and service life
- External clamps accept back and side wiring
- Insulating barrier between terminals provide isolation between phases
- Nickel plated brass mounting yoke for superior strength and corrosion resistance
- Oversized toggle provides positive actuation, even with gloved hand
-
Alternative Part Number14770930
-
UNSPSC39122211
-
IDEA Index ID14770930
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|NEMA WD-1/WD-6|UL 60947-4-1|CSA C22.2 No. 111: E63969|UL94 V-2 Flammability Rated|NOM 057
-
Warranty10 years Limited
-
