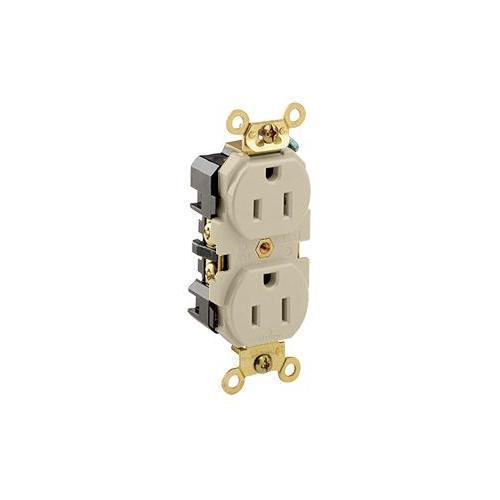

Leviton® 5262-I 1-Phase Duplex Extra Heavy Duty Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Ivory
Leviton® extra heavy duty industrial grade series receptacles withstand the rigors of the harshest environments, such as those found in factories, schools and municipal buildings. These specification grade devices are the best choice where durability, safety and reliability are of utmost importance.
-
BrandLeviton®
-
UPC078477139424
-
Manufacturer Part Number5262-I
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialThermoplastic
-
ColorIvory
-
Type1-Phase Duplex Extra Heavy Duty
-
GradeCommercial
-
NEMA RatingNEMA 5-15R
-
Voltage Rating125 V AC
-
Amperage Rating15 A
-
Horsepower1/2 hp
-
Number of Poles2
-
Dimensions46 in H x 1.53 in W x 1.11 in D
-
Number of Wires3
- Impact resistant thermoplastic nylon cover and body
- Four corner latches securely fasten face
- Large triple wipe, brass T contacts for superior contact and conductivity
- Back and side wiring options
- Brass terminal screws to reduce conductor oxidation
- Break-OFF tabs allow easy 2-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
- Wire lead receptacles for fast and easy installation
- Wallbox mounting
- Self-grounding, 8-hole feed-through
- 14 to 10 AWG wire terminal
- 2000 VAC minimum dielectric strength
- Maximum 30 deg C after 250 cycles OL at 200% rated current
- 1-phase
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5C357 |
-
Alternative Part Number7351491
-
UNSPSC39121406
-
IDEA Index ID7351491
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification W-C-596 File No. E13399|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
Warranty10 years Limited
-
RoHS
-
Instruction/Installation Manual
-
Owners/User Manual
