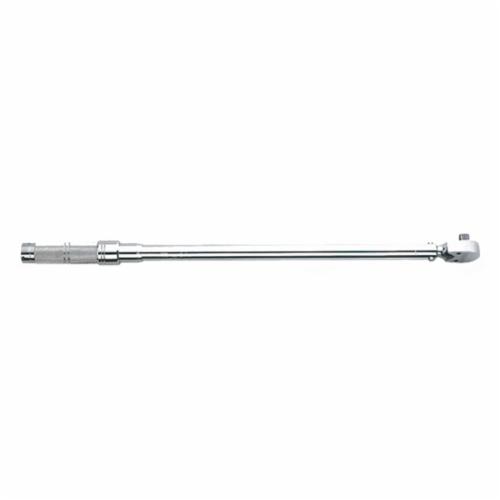

Proto® J6063C C Series Micrometer Torque Wrench, 3/8 in Drive, 40 to 200 in-lb, Fixed Head, 1 in-lb Graduation, 11 in OAL, ASME B107.300-2010, TO33K6-4-2193-1
Proto® J6063C C Series Micrometer Torque Wrench, 3/8 in Drive, 40 to 200 in-lb, Fixed Head, 1 in-lb Graduation, 11 in OAL, ASME B107.300-2010, TO33K6-4-2193-1
-
BrandProto®
-
UPC662679136062
-
Manufacturer Part NumberJ6063C
-
CountryUSA|Canada
-
FinishFull Polished
-
MaterialSteel
-
Torque Range40 to 200 in-lb
-
Minimum Number of Cycles50000
-
Graduations1 in-lb
-
Accuracy+/-3% CW, +/-6% CCW
-
Rotation TypeCW/CCW
-
Handle TypeKnurled/Screw-On End Cap
-
Head TypeFixed
-
SeriesC Series
-
SettingAutomatic Reset
-
Indicator TypeAudible Click
-
Specifications MetASME B107.300-2010, TO33K6-4-2193-1
-
Drive Size3/8 in
-
Overall Length11 in
- Calibrated to +/-4% clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
- Calibration is accomplished by manual loading the torque wrenches
- This Proto® torque wrench is made from high grade steel for strength and durability
- Thin head design to allow access in tight areas
- Calibrated to +/-3% in clockwise direction and +/-6% in counter clockwise direction
- For strength and durability
| Competitor Name | Competitor Part Number |
|---|---|
| MSC | 38362281 |
| MSC | 38362281 |
| MSC | 38362281 |
-
UNSPSC27111715
-
Package Description1/BX
-
Standards/ApprovalsASME B107.14
