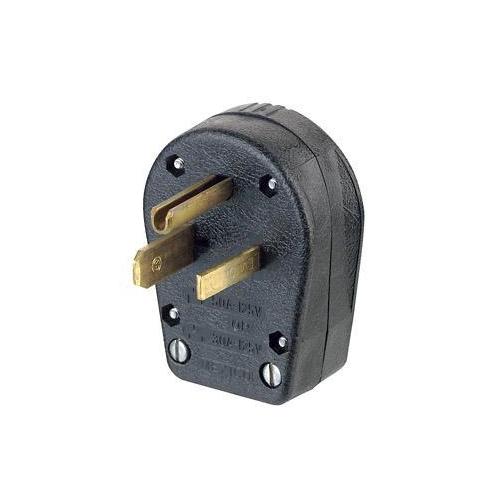

Leviton® 930-E Angle Grounding Straight Blade Plug, 125 V AC, 30/50 A, 2 Poles, 3 Wires, Black
Leviton® offers a large selection of 15, 20, 30 and 50 A commercial-grade Straight Blade Plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant and they're ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
-
BrandLeviton®
-
UPC078477644942
-
Manufacturer Part Number930-E
-
CountryUSA
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBacked-Out Screw
-
MaterialThermoplastic
-
ColorBlack
-
TypeAngle Grounding
-
GradeCommercial
-
NEMA RatingNEMA 5-30P/5-50P
-
Voltage Rating125 V AC
-
Cord Diameter0.63 to 1.05 in
-
Amperage Rating30/50 A
-
Series930
-
Number of Poles2
-
Dimensions2.56 in W x 3.49 in H
-
Number of Wires3
-
Alternative Part Number15895618
-
UNSPSC39121402
-
IDEA Index ID15895618
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|CSA C22.2 File No. 42/LR-406|NEMA WD-6|NOM 057|UL 498|UL File No. E13393
-
Warranty2 years Limited
-
Specification Sheet
-
Instruction/Installation Manual
