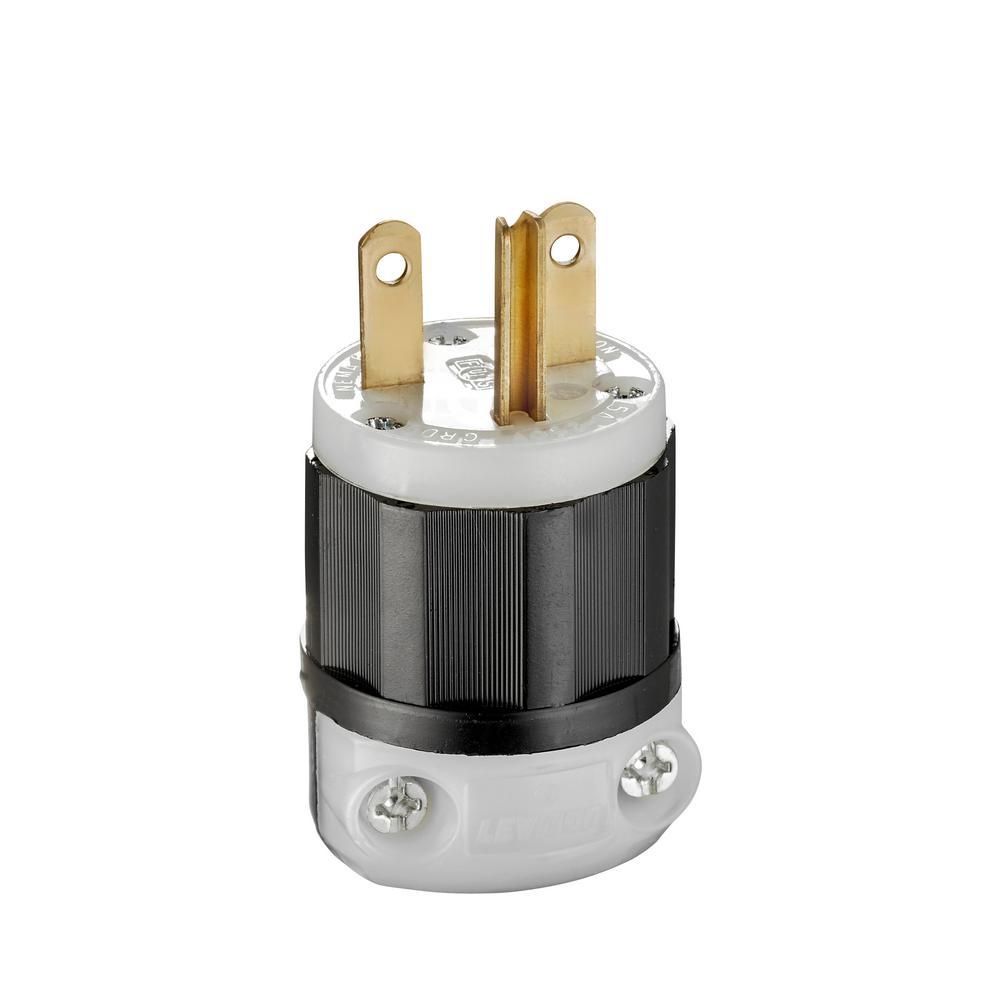

LEVITON 15-AMP 250-V 2-POLE 3-WIRE NEMA LEV 5666-C
Leviton® Black & White® line of industrial grade plugs and connectors offer superior performance, long lasting reliability and features that are backed by a lifetime warranty. Available in many NEMA and non-NEMA configurations, youll be sure to find the right device for your needs.
-
BrandLeviton®
-
UPC078477795576
-
Manufacturer Part Number5666-C
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
MaterialNylon
-
ColorBlack/White
-
TypeAngled Cable Mount Grounding
-
GradeIndustrial
-
NEMA RatingNEMA 6-15P
-
Voltage Rating250 V AC
-
Cord Diameter0.25 to 0.685 in
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions1.53 in Dia x 1.98 in H
-
Number of Wires3
- Rugged nylon construction resists impact, sunlight, chemicals and rough use
- All contacts are solid 1-piece brass for better conductivity
- Triple wipe, heavy duty power contacts set in deep pockets to resist damage
- Captive, color coded brass 8 AWG terminal screws
- Unique cord clamp accepts wide range of cord sizes (0.245 to 0.7 in), providing secure grip without damaging cord jacket SVT 18/3 to so 14/3 AWG with strain relief insert, up to ST 10/3 AWG when strain relief insert is removed
- Power indication devices indicate when power is ON and equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years
- 18 to 10 AWG terminal accommodation
- Zinc plated steel assembly screws and solid brass blade and contacts
- Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
- Super tough nylon body
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 5C371 |
-
Alternative Part Number7326465
-
UNSPSC39121402
-
IDEA Index ID7326465
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|NOM 057|NEMA WD1/WD6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13399|Federal Specification WC596|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
RoHS
-
Instruction/Installation Manual
