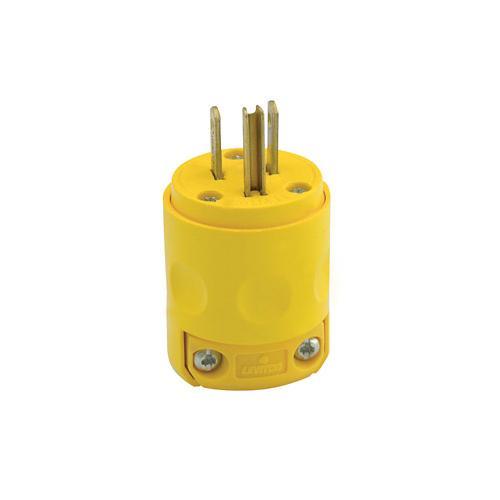

Leviton® 515PV Cable Mount Grounding Straight Blade Plug, 125 V AC, 15 A, 2 Poles, 3 Wires, Yellow
Leviton® 515PV Cable Mount Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
-
BrandLeviton®
-
UPC078477841242
-
Manufacturer Part Number515PV
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
MaterialPVC
-
ColorYellow
-
TypeCable Mount Grounding
-
GradeCommercial/Residential
-
NEMA RatingNEMA 5-15P
-
Voltage Rating125 V AC
-
Cord Diameter0.245 to 0.7 in
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions1.54 in Dia x 2.77 in H
-
Number of Wires3
- Triple drive standard head screws
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Deep slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
- Husk and module keyed for easy alignment during wiring
- Rugged PVC body resist moisture and chemicals
- Speed thread assembly screws tighten with just a few quick turns
- Zinc plated steel assembly screws and solid brass blade and contacts
- 18 to 12 AWG terminal accommodation
- Suited for outdoor cords
- Built-in cord grip adjusts automatically for use with #18 to 3 AWG through #12 to 3 AWG cords
- Motor base inlet accepts #10 AWG maximum copper or copper clad wire
- Grounding, rugged plc. body resist moisture and chemicals suited for outdoor cords
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25KR76 |
| 507253 |
-
Alternative Part Number7341829
-
UNSPSC39121402
-
IDEA Index ID7341829
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|NOM 057|NEMA WD6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13393|UL94 V-2 Flammability Rating
-
Warranty10 years Limited
-
RoHS
-
Instruction/Installation Manual
