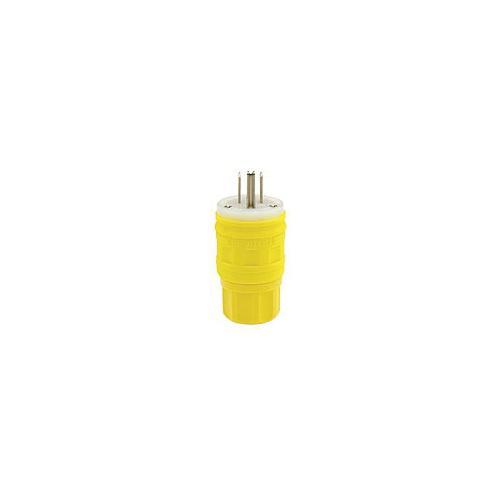

Leviton® 14W47 1-Phase Cable Mount Grounding Watertight Straight Blade Plug, 125 V AC, 15 A, 2 Poles, 3 Wires, Yellow
Leviton® Wetguard® line of industrial watertight wiring devices are the most versatile, well engineered watertight devices ON the market. They meet IP67 and NEMA ratings for water ingress protection and offer many significant advantages over competitive brands.
-
BrandLeviton®
-
UPC078477848296
-
Manufacturer Part Number14W47
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialTPV
-
ColorYellow
-
Type1-Phase Cable Mount Grounding Watertight
-
GradeIndustrial
-
NEMA RatingNEMA 5-15P
-
Voltage Rating125 V AC
-
Cord Diameter0.375 to 0.655 in
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions1.5 in Dia x 2.71 in L
-
Number of Wires3
-
EnclosureNEMA 4/4X/12/IP66/IP67
-
Series130146
- Corrosion resistant electroless nickel coated brass blades, contacts, terminal screws and wiring clamps and stainless steel assembly screws make these devices ideal for use in wet and corrosive environments
- EPTR rubber part provides outstanding resistance to wet and damp environments, extreme temperature variations, water, acids, alkalis, grease, oils and many automotive and industrial lubricants and solvents
- Plug and connector husk is molded to a bondable nylon body, providing a device that withstands physical abuse
- Interlocking tongue and groove construction seals out water, moisture and dirt when plugs are mated with connectors
- Multi-point sealing system utilizes nut, strain relief washer and rubber bushing to form a watertight cord grip seal
- Non-magnetic stainless steel fast threading assembly screws wont interfere with sensitive equipment
- Connector hood closure cap seals device when not in use
- 18 to 10 AWG terminal accommodation
- S/ST/SO/SOW cord
- NEoTEX® paracril OZO rubber outer housing and grommet
- Stainless steel face screws
- Nylon face insert
- Brass wire saddle clamp
- Lexan® receptacle cover plate and closure caps
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 4UFC5 |
-
Alternative Part Number7344541
-
UNSPSC39121402
-
IDEA Index ID7344541
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|CSA C22.2 No. 42 File No. LR406|Federal Specification WC596|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
