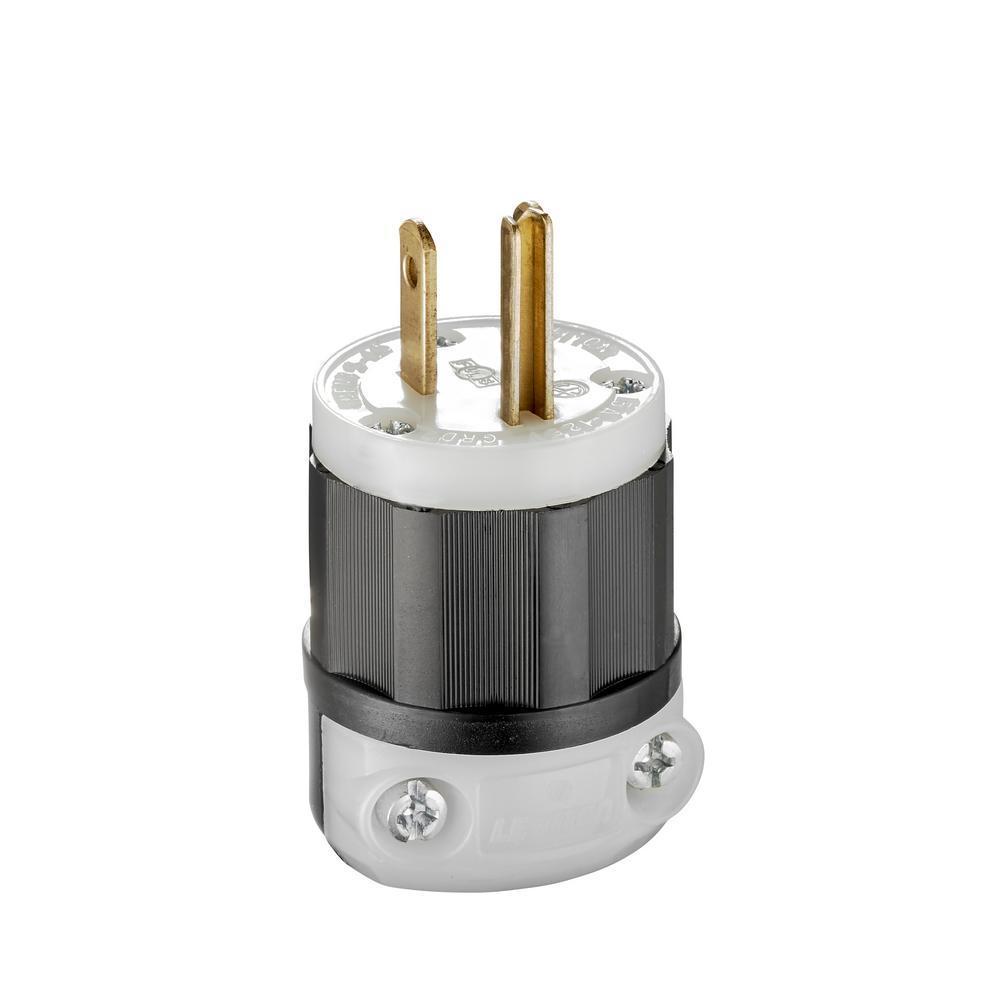

Leviton® 5266-C Cable Mount Grounding Straight Blade Plug, 125 V AC, 15 A, 2 Poles, 3 Wires, Black/White
Leviton® Black & White® line of industrial grade plugs and connectors offer superior performance, long lasting reliability and features that are backed by a lifetime warranty. Available in many NEMA and non-NEMA configurations, youll be sure to find the right device for your needs.
-
BrandLeviton®
-
UPC078477795200
-
Manufacturer Part Number5266-C
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
MaterialNylon
-
ColorBlack/White
-
TypeCable Mount Grounding
-
GradeIndustrial
-
NEMA RatingNEMA 5-15P
-
Voltage Rating125 V AC
-
Cord Diameter0.25 to 0.685 in
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions1.53 in Dia x 1.98 in H
-
Number of Wires3
- Rugged nylon construction resists impact, sunlight, chemicals and rough use
- All contacts are solid 1-piece brass for better conductivity
- Triple wipe, heavy duty power contacts set in deep pockets to resist damage
- Captive, color coded brass 8 AWG terminal screws
- Power indication devices indicate when power is ON and equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years
- 18 to 10 AWG terminal accommodation
- Zinc plated steel assembly screws and solid brass blade and contacts
- Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
- Super tough nylon body
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5C369 |
-
Alternative Part Number7326239
-
UNSPSC39121402
-
IDEA Index ID7326239
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|NOM 057|NEMA WD1/WD6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13399|Federal Specification WC596|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
