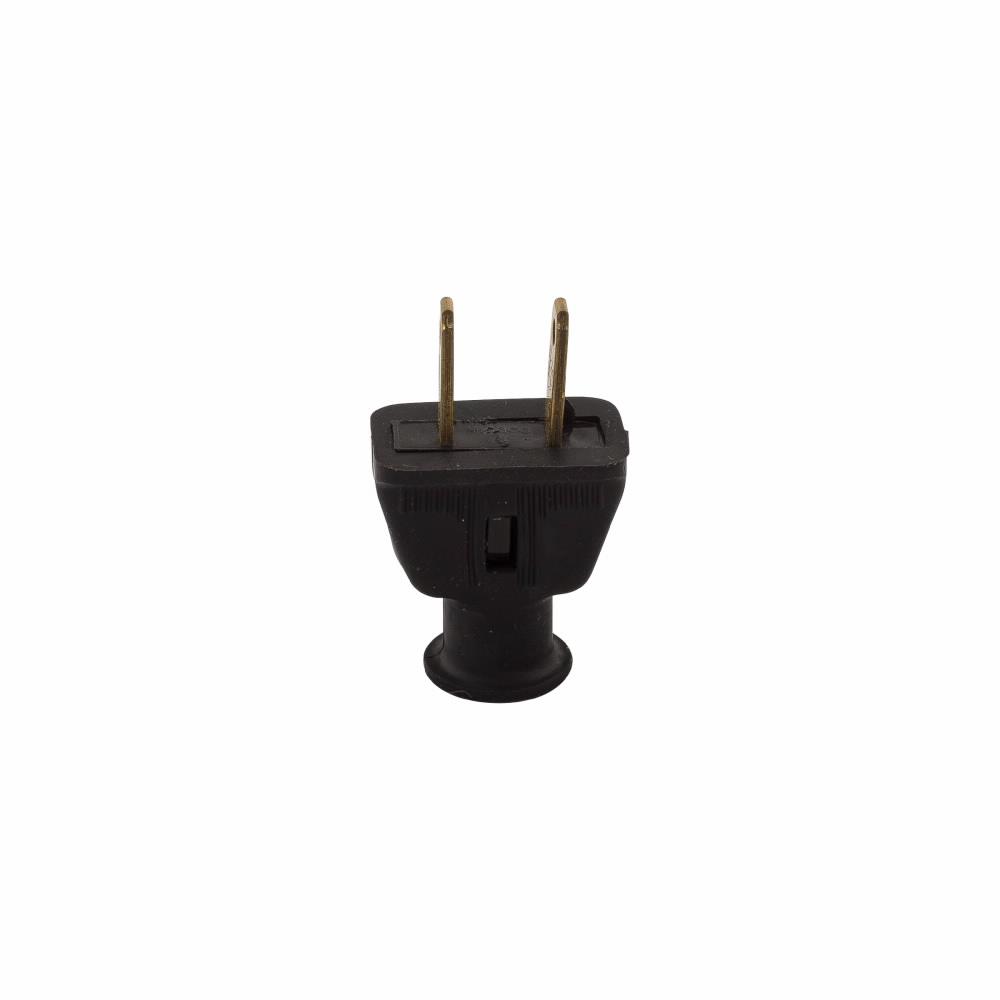

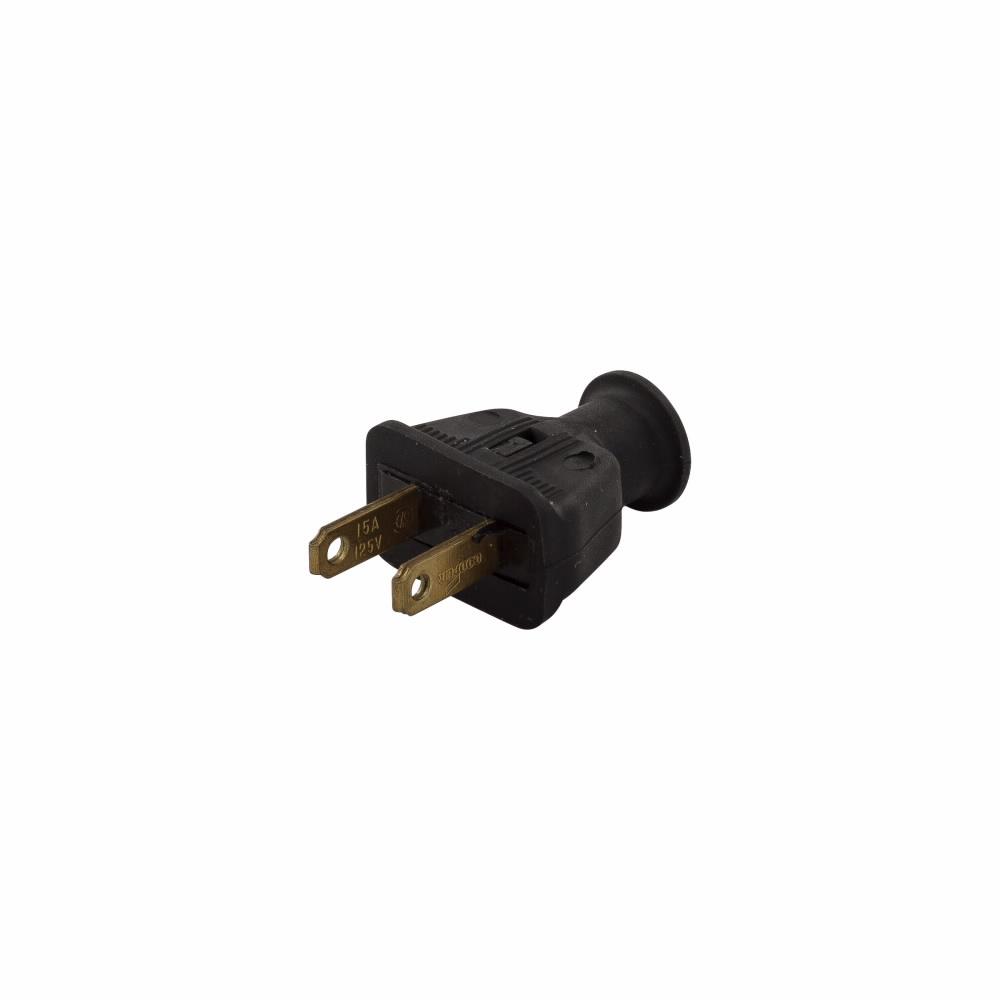

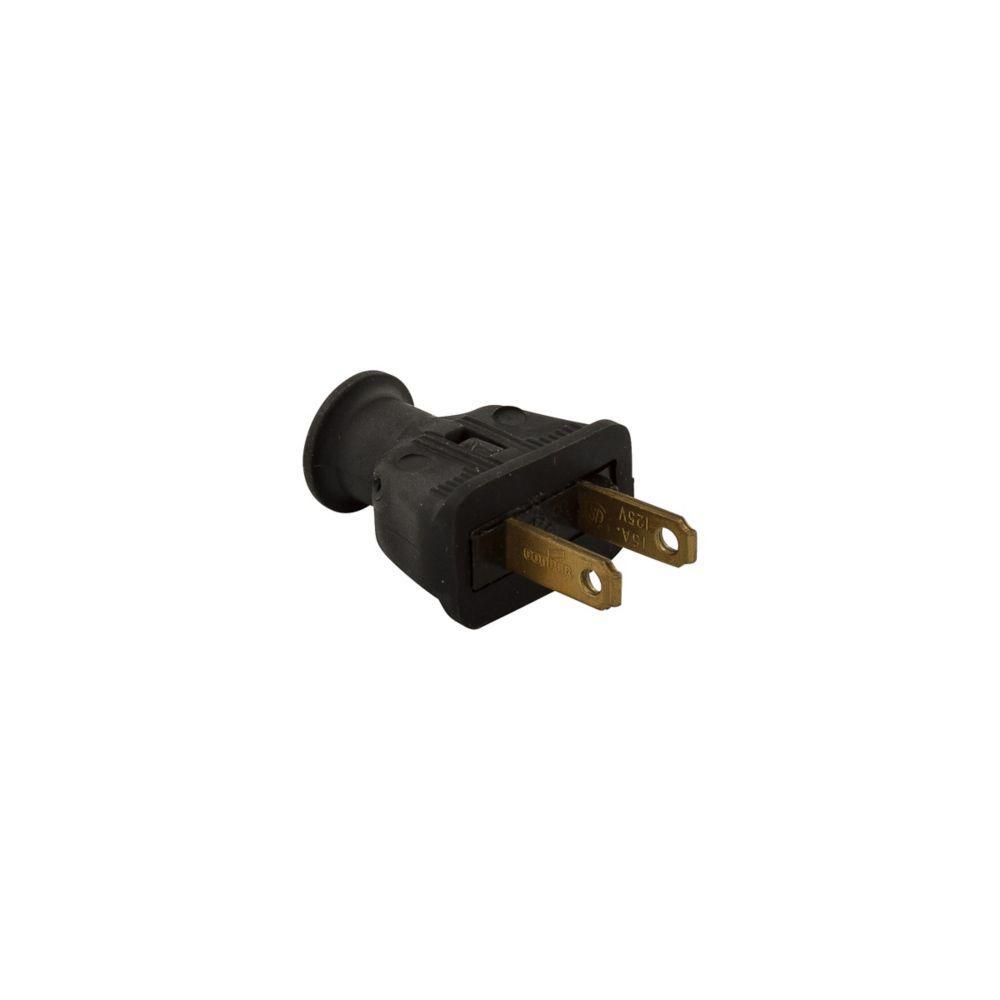

EATON Arrow Hart™ Eaton Wiring Devices 183BK-BOX Non-Grounding Straight Blade Plug, 125 V AC, 15 A, 2 Poles, 2 Wires, Black
Standard grade rubber plugs non-grounding angle plugs allow placement of cord in convenient location. plug blades are firmly embedded in body. Terminal screws backed out ready for wiring.
-
BrandEATON
-
UPC032664214905
-
Manufacturer Part Number183BK-BOX
-
CountryUSA
-
Temperature Rating-20 to 70 deg C
-
Terminal TypeThreaded
-
MaterialRubber
-
ColorBlack
-
TypeNon-Grounding
-
GradeCommercial/Residential/Standard
-
NEMA RatingNEMA 1-15P
-
Voltage Rating125 V AC
-
Cord Diameter0.33 in
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions1.17 in W x 0.73 in D
-
Number of Wires2
- Plug blades are firmly embedded in body
- Rubber plugs maintain flexibility in low temperatures
- Angle plugs allow placement of cord in convenient location
- Terminal screw are backed out and ready-to wire
- Combination slot Phillips® head mounting and terminal screws for installation flexibility
- Universal plugs include blades for both 30 A and 50 A configurations of the same voltage
- Terminals have pressure plates to protect wires
- 18 to 10 AWG wire
-
Alternative Part Number8167586
-
UNSPSC39121402
-
IDEA Index ID8167586
-
Package DescriptionEACH
-
Standards/ApprovalsNOM,UL,Federal Specification Classification 6221 02
-
Specification Sheet
-
Owners/User Manual
