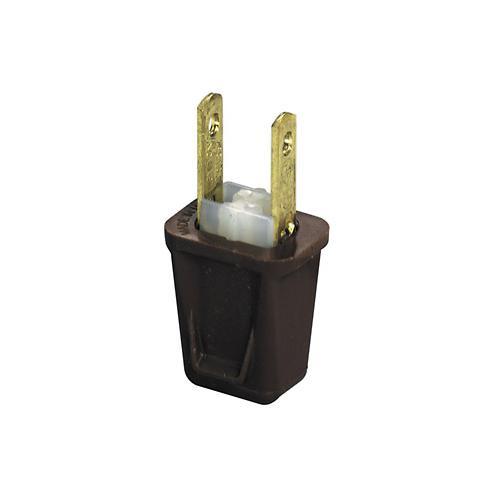

Leviton® 123 Cable Mount Non-Grounding Non-Polarized Straight Blade Plug, 125 V AC, 10 A, 2 Poles, 2 Wires, Brown
Leviton® 123 Cable Mount Non-Grounding Non-Polarized Straight Blade Plug, 125 VAC, 10 A, 2 Poles, 2 Wires, Brown
-
BrandLeviton®
-
UPC078477052983
-
Manufacturer Part Number123
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
MaterialThermoplastic
-
ColorBrown
-
TypeCable Mount Non-Grounding Non-Polarized
-
GradeResidential
-
NEMA RatingNEMA 1-15P
-
Voltage Rating125 V AC
-
Amperage Rating10 A
-
Number of Poles2
-
Dimensions16 in H x 0.98 in W x 0.75 in D
-
Number of Wires2
- Triple drive standard head screws
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Deep slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
- Husk and module keyed for easy alignment during wiring
- Built-in cord grip adjusts automatically for use with 18/3 AWG through 12/3 AWG cords
- Motor base inlet accepts 10 AWG maximum copper or copper clad wire
- Brass plug blades and connector contacts for maximum conductivity
- 20 to 18 AWG terminal accommodation and 18-2 SPT-1 cord grip
| Cross-Reference Number |
|---|
| 520458 |
-
Alternative Part Number7332465
-
UNSPSC39121402
-
IDEA Index ID7332465
-
Package DescriptionEACH
-
Standards/ApprovalsNOM 057|UL File No. E13393|CSA Certified|UL94 V-2 Flammability Rating
-
Warranty2 years Limited
-
Specification Sheet
-
Instruction/Installation Manual
