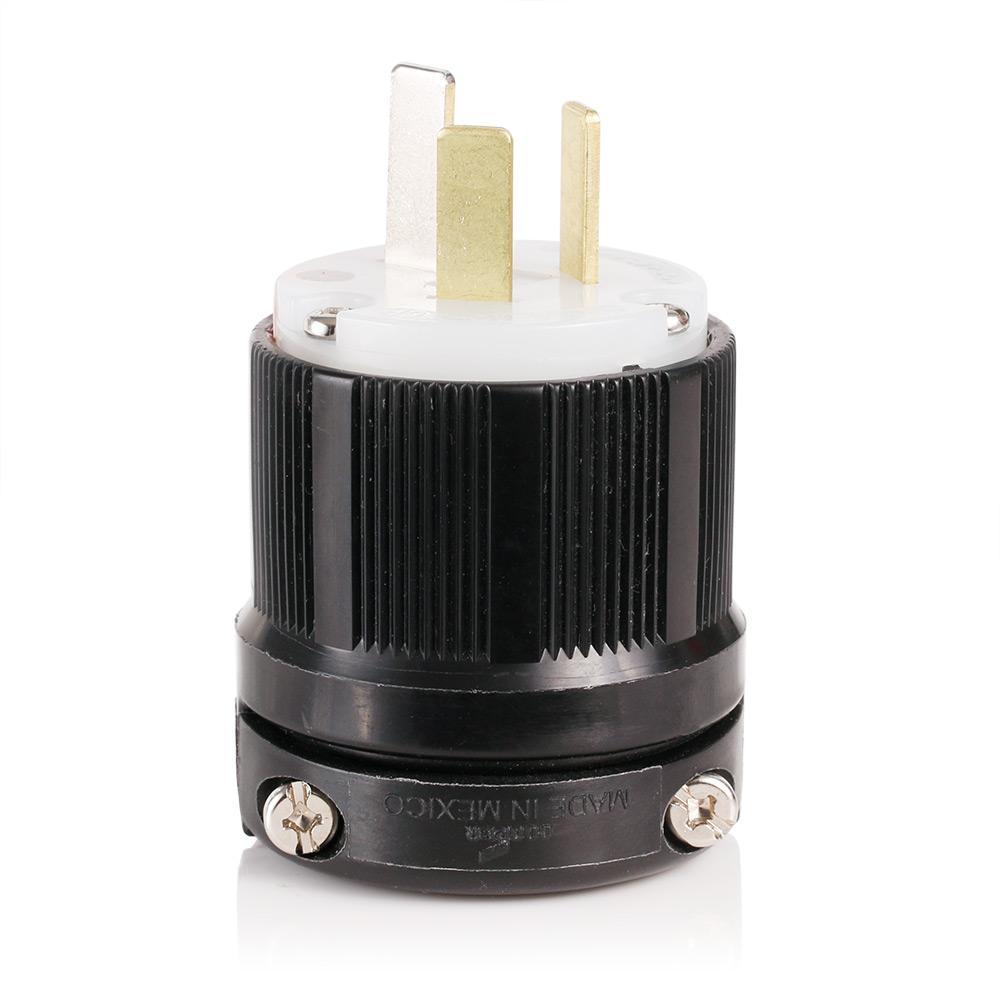

LEVITON 20-AMP 125/250V 3-POLE 3-WIRE PLUG LEV 9151-N
Leviton® offers industrial, commercial and residential plugs and connectors for unlimited application settings. Plugs and connectors are provided in a range of ratings from 15 to 60 A, the product line includes straight blade and locking devices in all NEMA configurations, as well as locking devices in non-NEMA configurations. Versions include hospital Grade, isolated ground, WetGuard®, Dustguard®, Python®, power plugs, corrosion resistant plugs and connectors, power interrupting devices, midget devices and much more.
-
BrandLeviton®
-
UPC078477808955
-
Manufacturer Part Number9151-N
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
MaterialNylon
-
ColorGray
-
TypeCable Mount Non-Grounding
-
GradeIndustrial
-
NEMA RatingNEMA 10-20P
-
Voltage Rating125/250 V AC
-
Cord Diameter0.25 to 0.685 in
-
Amperage Rating20 A
-
Horsepower2 hp L-L/1 hp L-N
-
Number of Poles3
-
Number of Wires3
- 1-piece, rivetless triple wipe brass connector contacts offer enlarged contact surface area
- Husk is constructed from heavy duty nylon for superior impact resistance in rugged environments
- Beveled back edges prevent body from catching on corners and rough surfaces
- Ergonomic, fluted body design with radial gripping edge is ideal for gripping and pulling
- Rugged nylon construction resists impact, sunlight, chemicals and rough use
- All contacts are solid 1-piece brass for better conductivity
- Triple wipe, heavy duty power contacts set in deep pockets to resist damage
- Power indication devices indicate when power is ON and equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years
- Zinc plated steel assembly screws and solid brass blade and contacts
- 18 to 10 AWG terminal accommodation
- Super tough nylon body
- Captive, color coded brass #8 AWG terminal screws
- Unique cord clamp accepts wide range of cord sizes (0.245 to 0.7 in), providing secure grip without damaging cord jacket SVT 18-3 to so 14-3 with strain relief insert, up to ST 10-3 when strain relief insert is removed
- Power Indication™ devices indicate when power is on and equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 5HZK3 |
-
Alternative Part Number7332151
-
UNSPSC39121402
-
IDEA Index ID7332151
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|NOM 057|NEMA WD1/WD6|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
